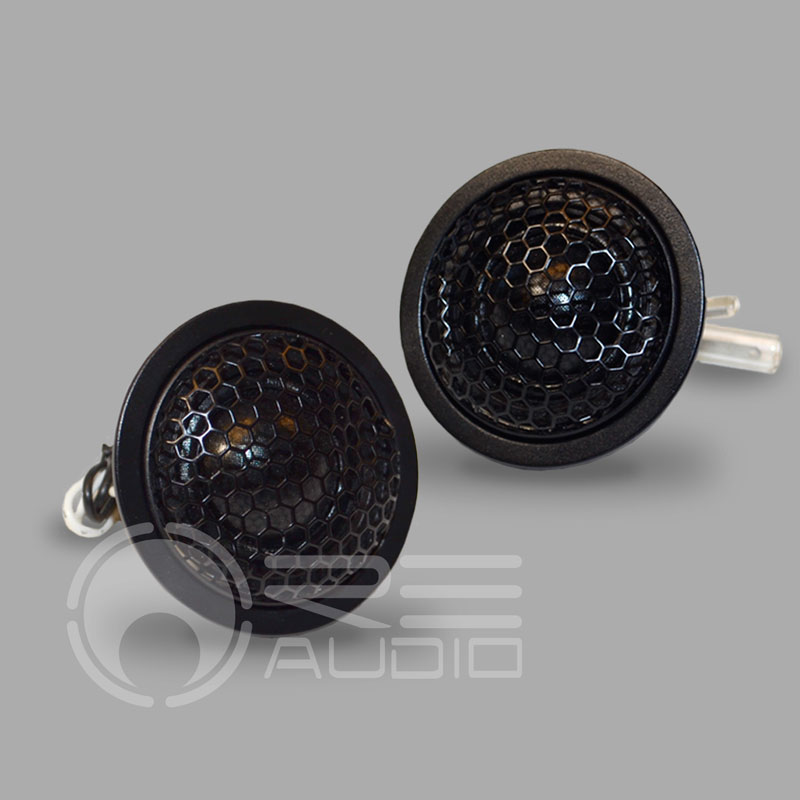

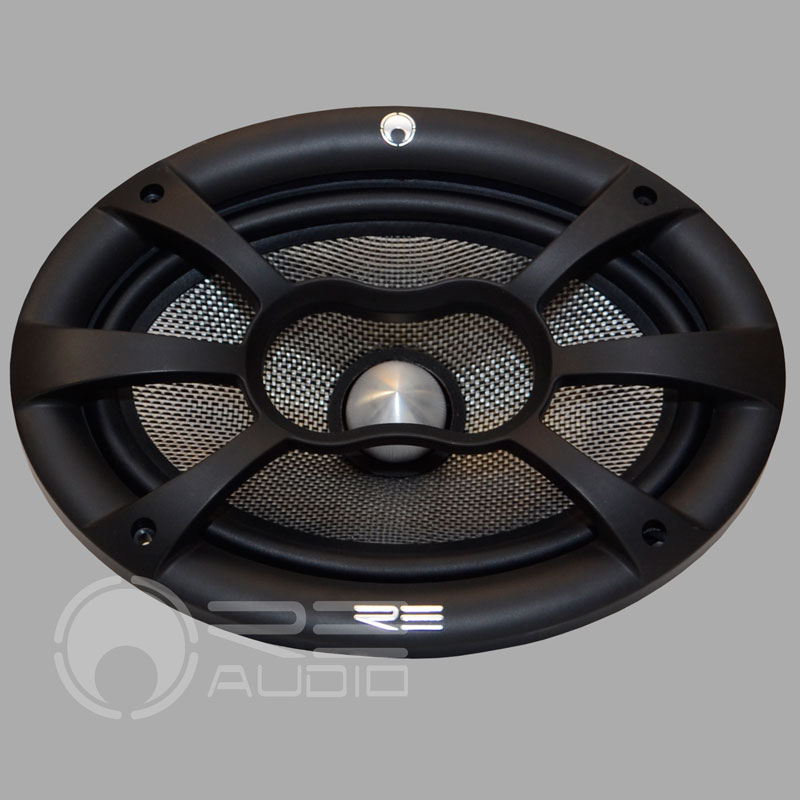

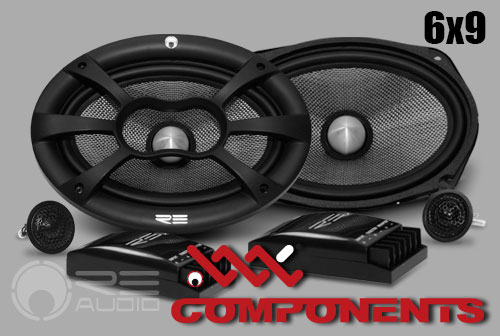

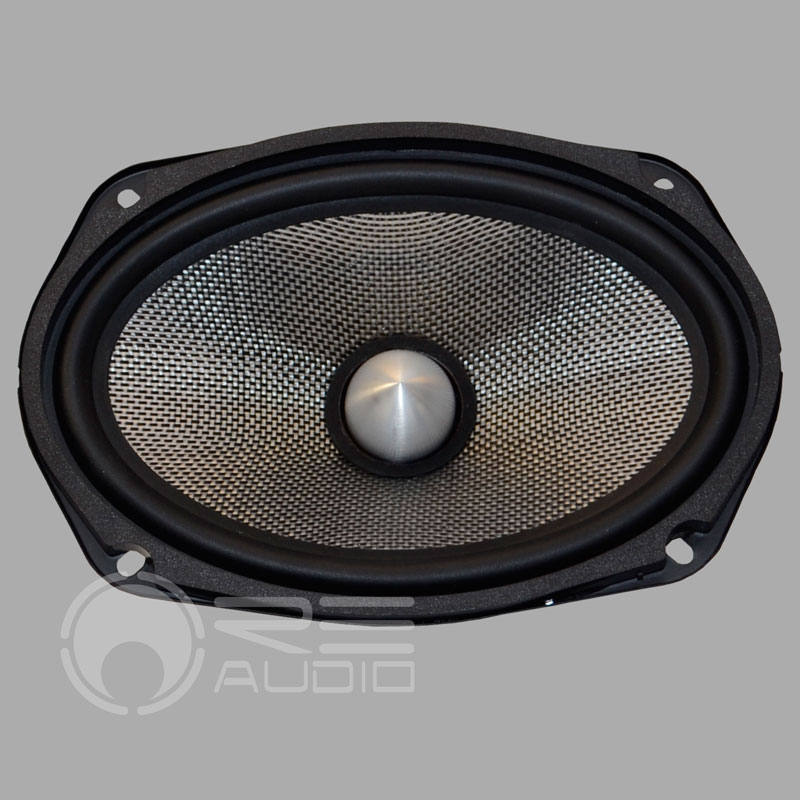

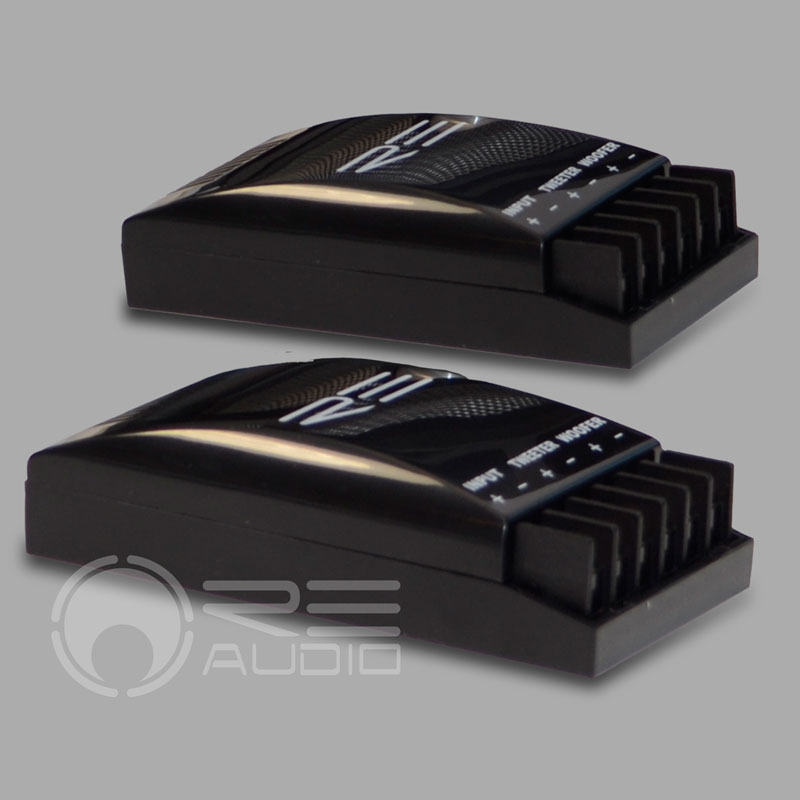

image of xxx 6x9 component system download manual

Expect a true Audiophile experience from the new Premium XXX 6x9 2-way Separate COMPONENT System .

Sizes: 6"x9" Component set (4 ohm)

  • Peak Power: 480 W
  • RMS Power: 240 W
  • 6"x9" Bass Driver / 1.1" Tetron Silk Dome Tweeter
  • Glass Fiber-Kevlar Cone
  • Aluminum Phase Plug
  • Aluminum Voice Coil Former
  • Butyl Rubber Surround
  • FEA-optimized Motor Structure
  • 30 oz. / Single Magnet
  • Symmetrical Neodymium Drive
  • Ferro-Fluid Cooling
  • High-grade Mylar Capacitors
  • 12dB/Octave High Pass Network
  • 6dB/Octave Low Pass Network
  • Optimum “Q” Alignment
  • Tweeter Protection Circuit
go to top

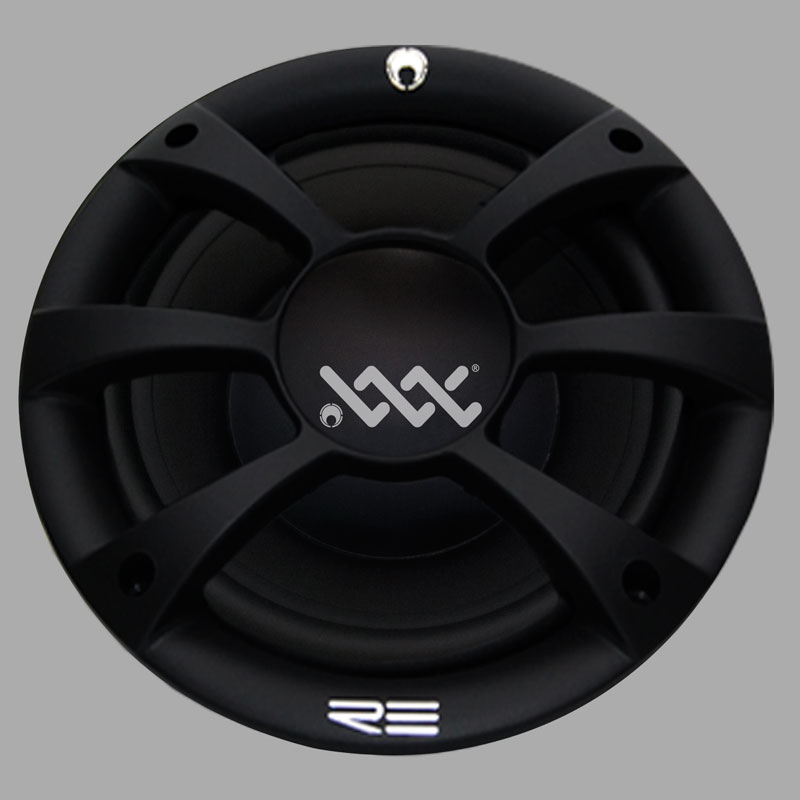

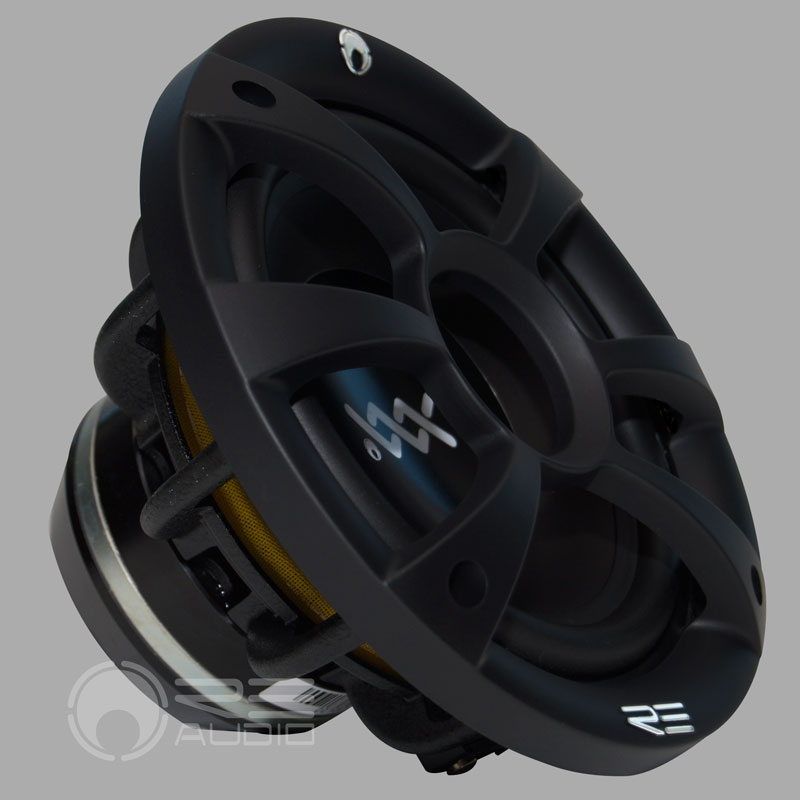

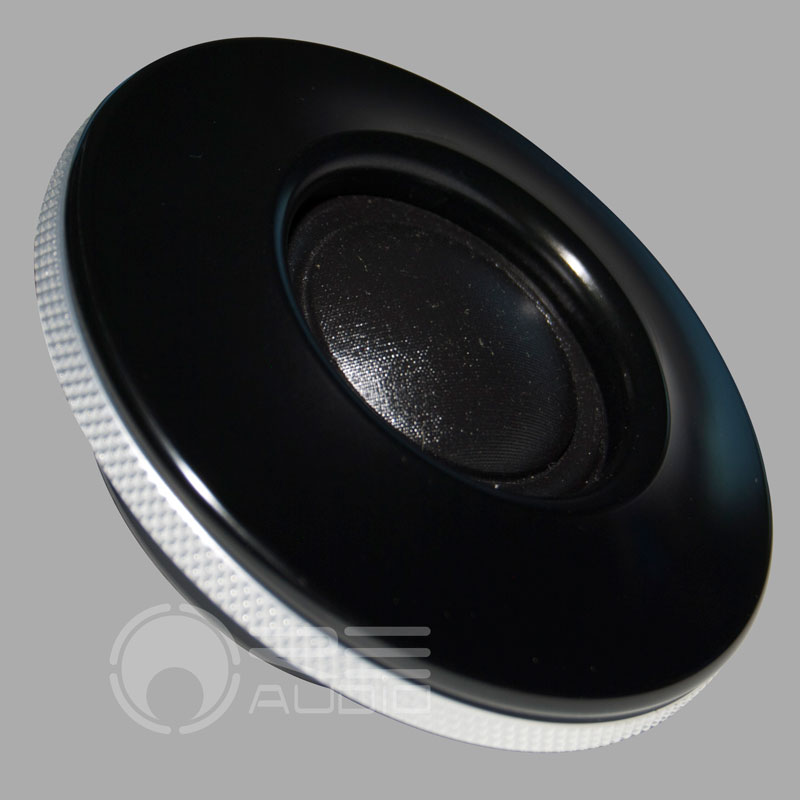

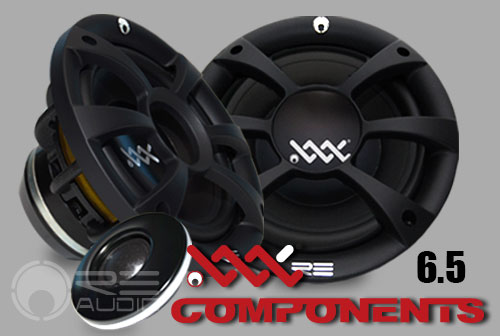

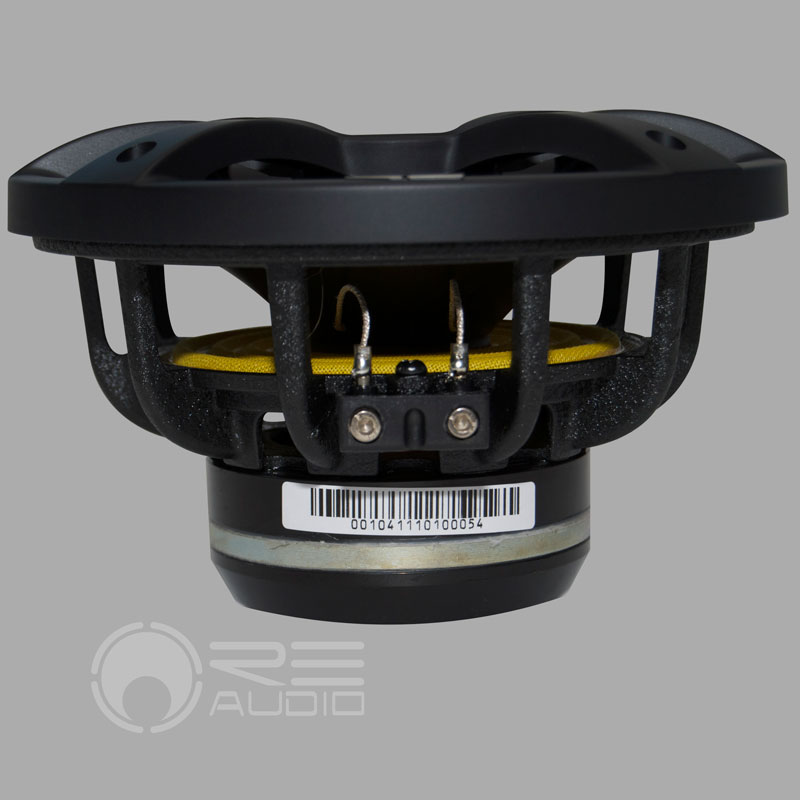

image of xxx 6.5 component system manual not available

Setting the new standard for reference systems, the XXX SERIES COMPONENTS bring sonic realism to a new level.

Sizes: 6.5" Component set (2 ohm)

  • Peak Power: 300 W
  • RMS Power: 150 W
  • 12dB/Octave Crossover Network
  • High Grade Non-inductive Resistors
  • Tweeter Attentuation Control
  • 6.5" Midbass Driver / 1" Silk Dome Tweeter
  • Sanoprene Surround w/Foamed Core Poly Aluminum Cone
  • Die-cast Aluminum Basket(Black)
  • FEA Optimized Motor Structure
  • High Linearity Nomex Spider
  • Extreme Excursion
  • 2.0" / Single / 4-layer Voice Coil
  • Powerful Single-stack Ceramic Motor - 80 oz.
  • 40 oz. / Single Magnet
  • Swiveling Flush Mount
go to top

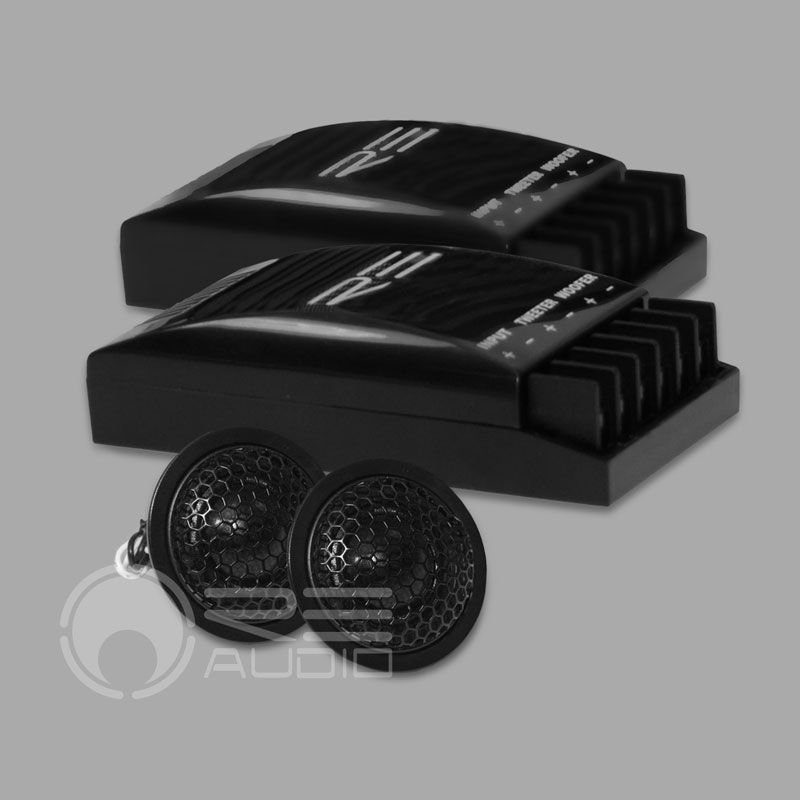

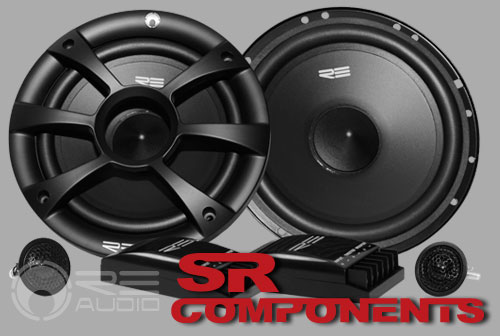

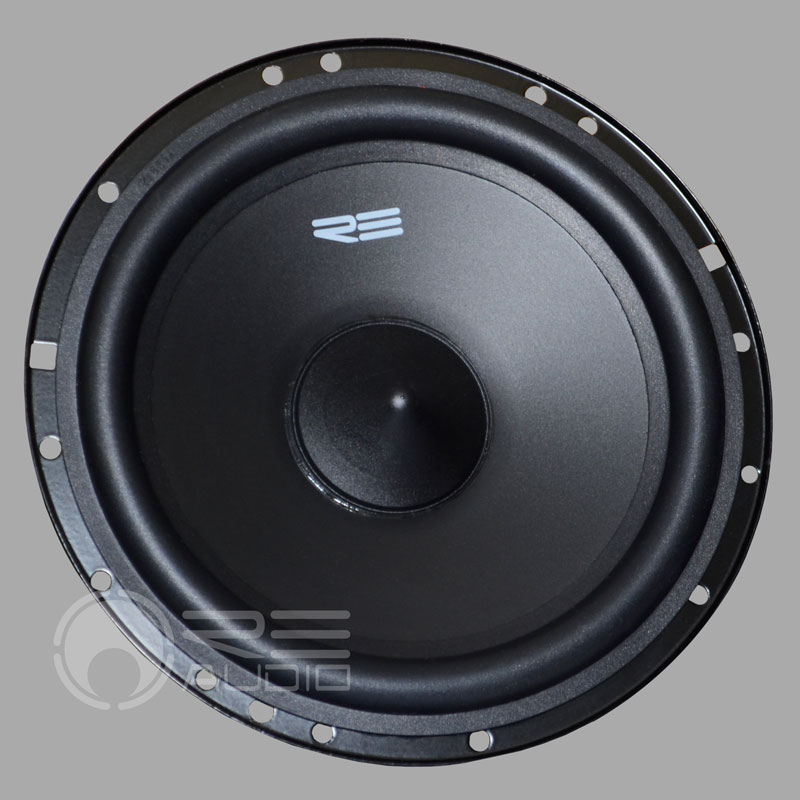

image of sr component system manual not available

Looking for superb sound? Look no further! The SR SERIES COMPONENTS is engineered to provide a solid complement to your bass.

Sizes: 6.5" Component set (4 ohm)

  • Peak Power: 200 W
  • RMS Power: 110 W
  • 12dB/Octave Crossover Network
  • 6.5" Midbass Driver
  • One Piece Poly Cone with integrated "Phase Plug"
  • FEA Optimized Motor Structure
  • Nomex Spider
  • 1.1"(28mm) Tectron Silk Dome Tweeter with Ferro-Fluid Cooling
  • Symmetrical Neodymium Drive on Tweeter
  • Swiveling Flush Mount Tweeter
go to top

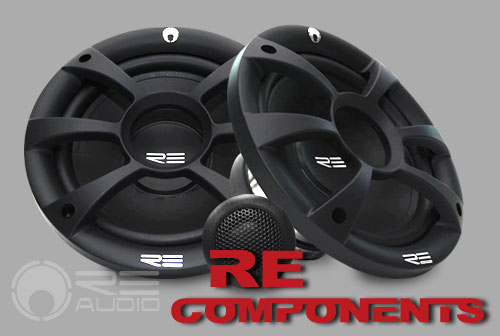

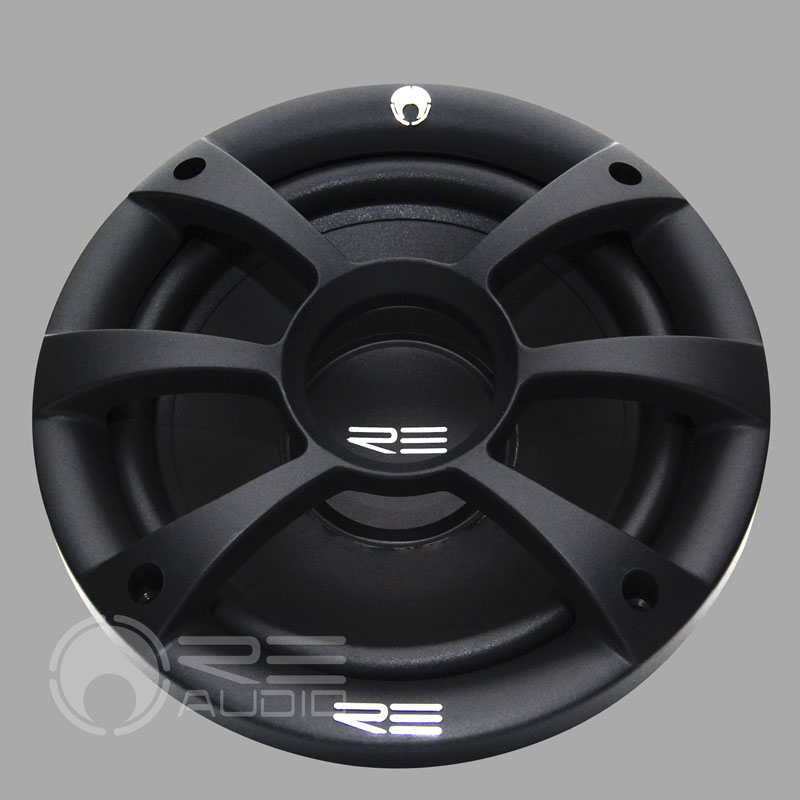

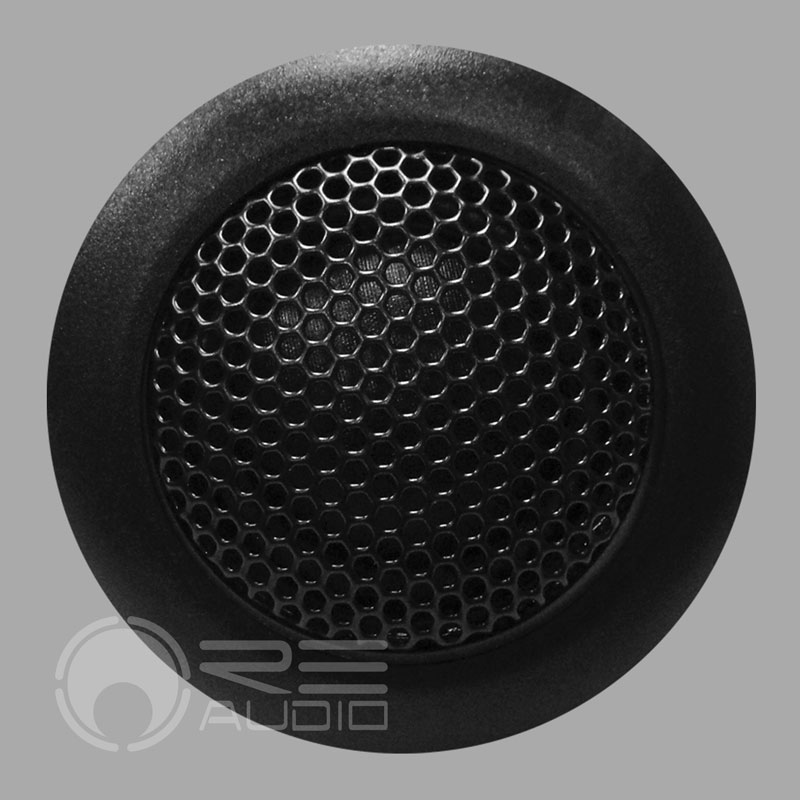

image of re component system manual not available

Clairty, control, and absolute effortlessness, the RE SERIES COMPONENTS sets the stage for an incredible system.

Sizes: 6.5" Component set (4 ohm)

  • Peak Power: 150 W
  • RMS Power: 75 W
  • 12dB/Octave Crossover Network
  • Tweeter Attentuation Control
  • 6.5" Midbass Driver / 1" Silk Dome Tweeter
  • Sanoprene Surround w/Mica-filled Core Poly Cap Cone
  • Stamped Steel Basket(Black)
  • Nomex Spider
  • FEA Optimized Motor Structure
  • 1.5" / Single / 2-layer / Split Voice Coil
  • Powerful Neodymium Motor - 60 oz.
  • 30 oz. / Single Magnet
  • Swiveling Flush Mount
go to top

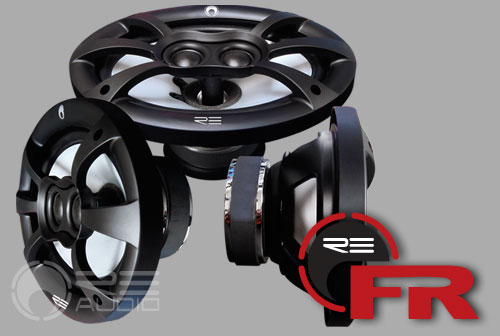

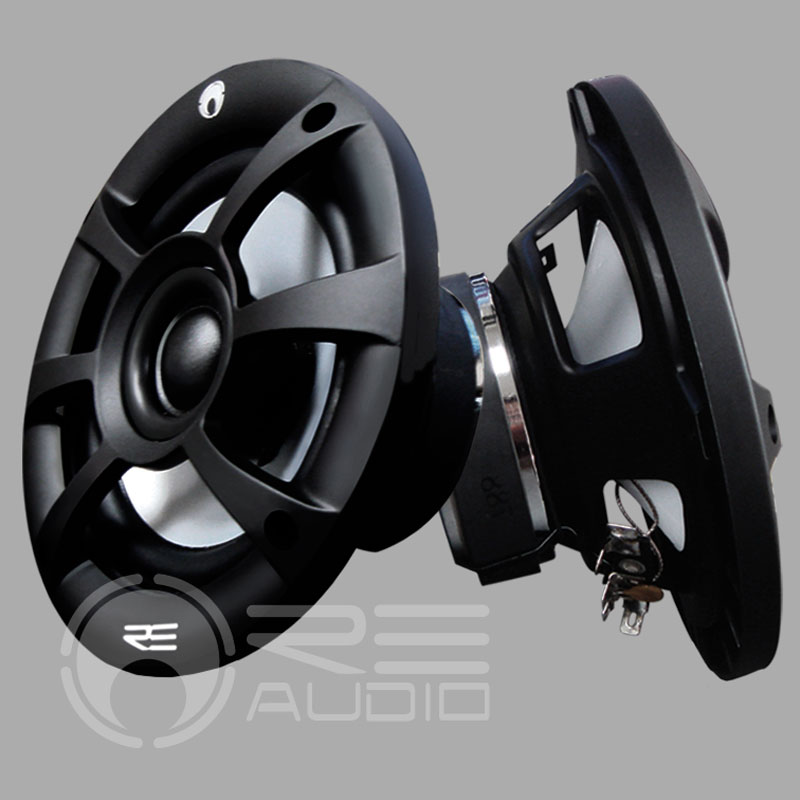

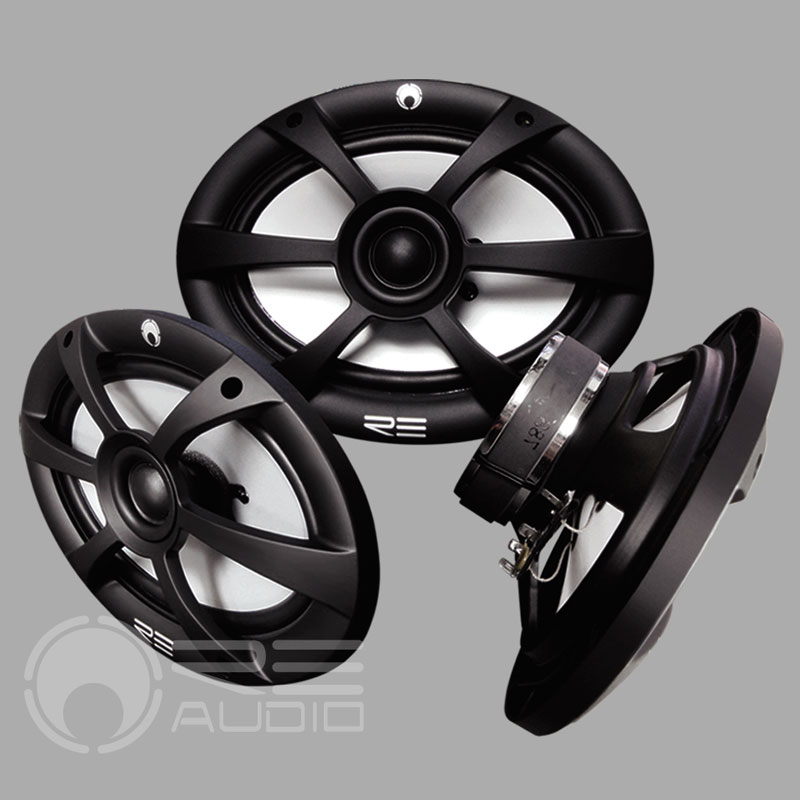

image of 6 by 9 fullrange download manual

You'll hear things you never heard before. Our FR SERIES Coaxial Kits incorporate a powerful woofer and true soft dome tweeter you may often find in a sophisticated home loudspeaker system and the response that goes with it.

6" x 9" Coaxial Kit (4 ohm)

+ more
  • SKU #: RE6x9FR
  • Configuration: 3-way
  • Peak Power: 200 W
  • RMS Power: 100 W
  • Frequency Response: 45-20,000 Hz
  • Efficiency: 91 dB
  • Lowest Resonant Frequency: 70 Hz
  • Cross Frequency: 2,500 Hz
  • Mounting Depth: 90 mm
  • Surround: Santoprene
  • Diaphragm: Black Silk Poliester
  • Basket: Stamped Steel / Black
  • Magnet: 30 oz. / Single
  • Motor Ass'y: 60 oz.
  • Voice Coil: 1.5 inch / Single / 2-layer
  • Cone Type: Poly w/Poly Cap

5" x 7" Coaxial Kit (4 ohm)

+ more
  • SKU #: RE5x7FR
  • Configuration: 2-way
  • Peak Power: 125 W
  • RMS Power: 70 W
  • Frequency Response: 55-20,000 Hz
  • Efficiency: 90 dB
  • Lowest Resonant Frequency: 100 Hz
  • Cross Frequency: 4,500 Hz
  • Mounting Depth: 61 mm
  • Surround: Santoprene
  • Diaphragm: Black Silk Poliester
  • Basket: Stamped Steel / Black
  • Magnet: 20 oz. / Single
  • Motor Ass'y: 30 oz.
  • Voice Coil: 1.0 inch / Single / 2-layer
  • Cone Type: Poly w/Poly Cap

6.5" Coaxial Kit (4 ohm)

+ more
  • SKU #: RE6.5FR
  • Configuration: 2-way
  • Peak Power: 125 W
  • RMS Power: 70 W
  • Frequency Response: 55-20,000 Hz
  • Efficiency: 90 dB
  • Lowest Resonant Frequency: 90 Hz
  • Cross Frequency: 4,000 Hz
  • Mounting Depth: 64 mm
  • Surround: Santoprene
  • Diaphragm: Black Silk Poliester
  • Basket: Stamped Steel / Black
  • Magnet: 15 oz. / Single
  • Motor Ass'y: 30 oz.
  • Voice Coil: 1.0 inch / Single / 2-layer
  • Cone Type: Poly w/Poly Cap

5.25" Coaxial Kit (4 ohm)

+ more
  • SKU #: RE5FR
  • Configuration: 2-way
  • Peak Power: 100 W
  • RMS Power: 50 W
  • Frequency Response: 75-20,000 Hz
  • Efficiency: 89 dB
  • Lowest Resonant Frequency: 100 Hz
  • Cross Frequency: 4,500 Hz
  • Mounting Depth: 55 mm
  • Surround: Sanoprene
  • Diaphragm: Black Silk Poliester
  • Basket: Stamped Steel / Black
  • Magnet: 15 oz. / Single
  • Motor Ass'y: 30 oz.
  • Voice Coil: 1.0 inch / Single / 2-layer
  • Cone Type: Poly w/Poly Cap
go to top

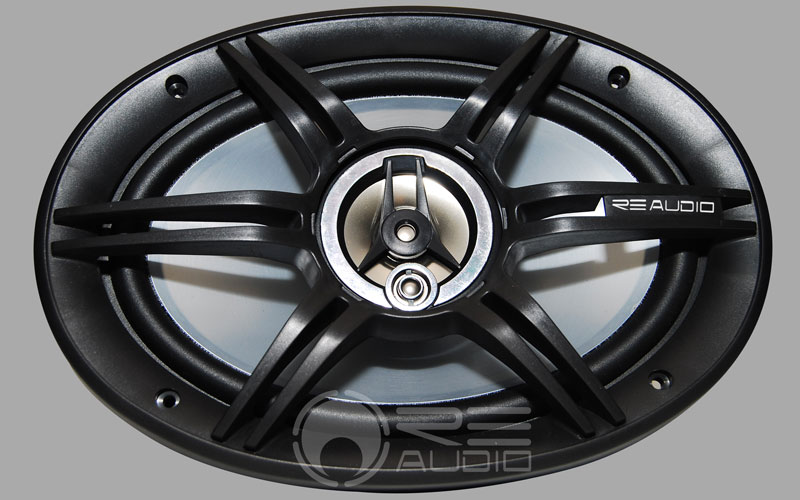

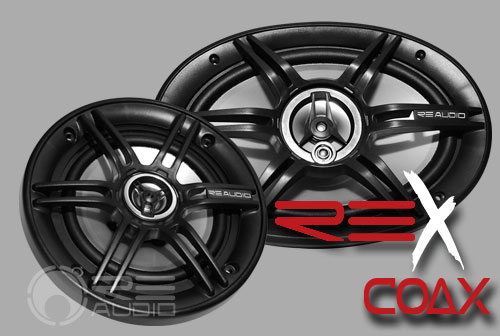

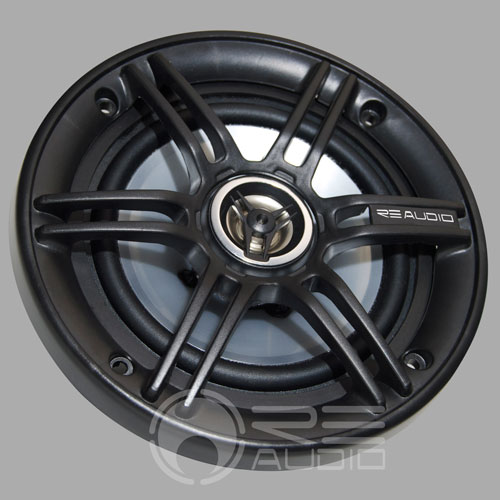

image of rex coaxial download manual

Complete your sound system with high-fidelity REX Coaxial.
REX Coaxial adds dramatic depth to your listening experience.
It can take you to places in your music collection you may have forgotten you had.

6" x 9" Coaxial Kit (4 ohm)

+ more
  • SKU #: REX6.9
  • Configuration: 3-way
  • Peak Power: 200 W
  • RMS Power: 100 W
  • Frequency Response: 45-20,000 Hz
  • Efficiency: 91 dB
  • Lowest Resonant Frequency: 70 Hz
  • Cross Frequency: 2,500 Hz
  • Mounting Depth: 90 mm
  • Surround: Rubber
  • Diaphragm: Black Poliester(P.E.I.)

5" x 7" Coaxial Kit (4 ohm)

+ more
  • SKU #: REX5.7
  • Configuration: 2-way
  • Peak Power: 125 W
  • RMS Power: 70 W
  • Frequency Response: 55-20,000 Hz
  • Efficiency: 90 dB
  • Lowest Resonant Frequency: 100 Hz
  • Cross Frequency: 4,500 Hz
  • Mounting Depth: 61 mm
  • Surround: Rubber
  • Diaphragm: Black Poliester(P.E.I.)

6.5" Coaxial Kit (4 ohm)

+ more
  • SKU #: REX6.5
  • Configuration: 2-way
  • Peak Power: 125 W
  • RMS Power: 70 W
  • Frequency Response: 55-20,000 Hz
  • Efficiency: 90 dB
  • Lowest Resonant Frequency: 90 Hz
  • Cross Frequency: 4,000 Hz
  • Mounting Depth: 64 mm
  • Surround: Rubber
  • Diaphragm: Black Poliester(P.E.I.)

5.25" Coaxial Kit (4 ohm)

+ more
  • SKU #: REX5
  • Configuration: 2-way
  • Peak Power: 100 W
  • RMS Power: 50 W
  • Frequency Response: 75-20,000 Hz
  • Efficiency: 89 dB
  • Lowest Resonant Frequency: 100 Hz
  • Cross Frequency: 4,500 Hz
  • Mounting Depth: 55 mm
  • Surround: Rubber
  • Diaphragm: Black Poliester(P.E.I.)
go to top

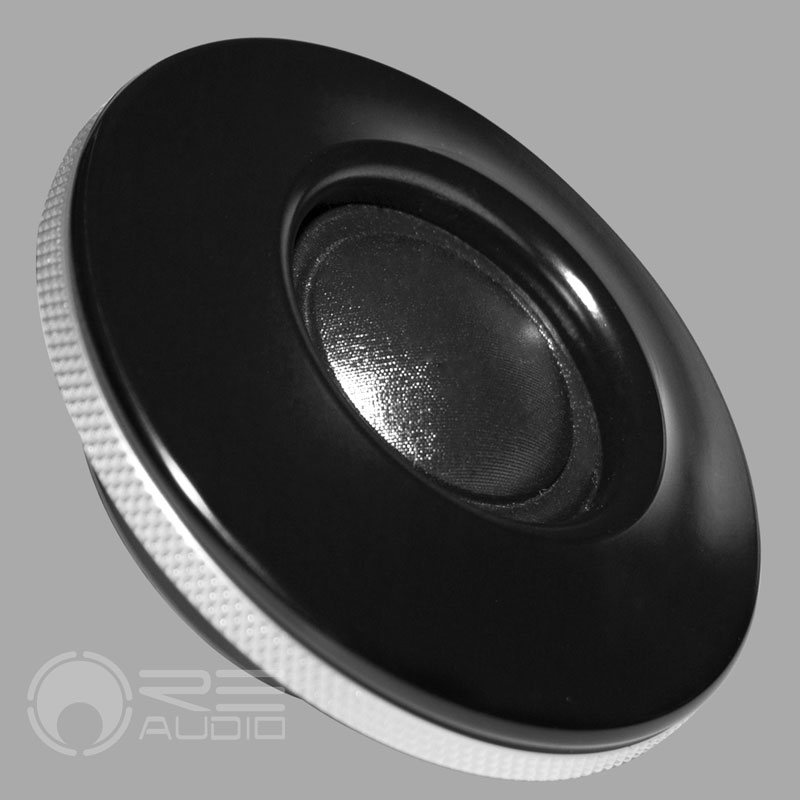

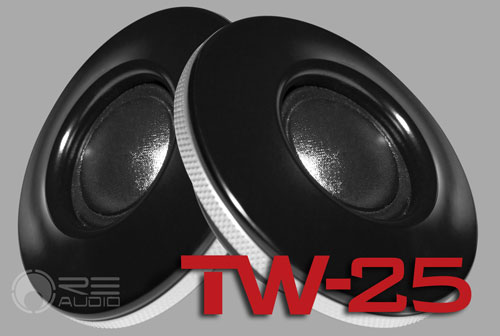

image of tw25 tweeter download manual

RE Audio engineers have designed the TW-25 to perform as near to perfect as can be expected.
Expect ultra-high performance from cutting-edge technologies that enable the widest possible dynamic range with the most linear frequency response possible. The TW-25 is thermally protected and is supplied with high-efficiency 12dB crossover utilizing high-grade mylar capacitors.

Sizes: 1.1"(28mm) Tweeter set (4 ohm)

  • Peak Power: 200 W
  • RMS Power: 100 W
  • 28mm Soft Dome Tweeter
  • 28mm Oxygen-free Pure Copper Voice Coil
  • Hexatech Aluminum Voice Coil Former
  • UV-treated Open Weave Silk Dome Diaphragm
  • Low-Viscosity Ferro-Fluid Cooling
  • Highest Grade Neodymium Magnet
  • Low Resonance Frequency: 1,500 Hz
  • Custom Back Wave Canceling CNC Aluminum Enclosure
  • Wave Guide Front Baffle for Optimal Dispersion
  • High Grade Mylar Capacitors
  • Unique Automatic Thermal Protection
  • High Grade Ferrite Core Induction for Low Loss
  • Durable PVC Enclosure
go to top

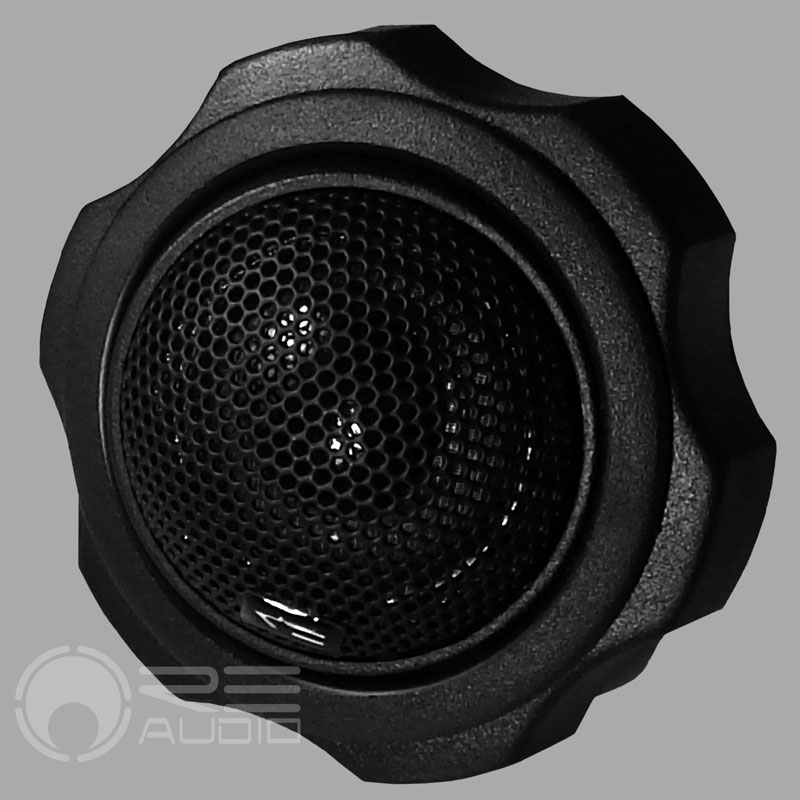

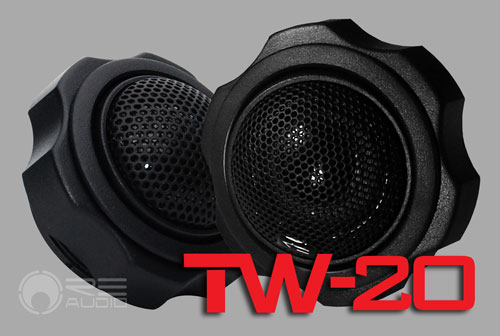

image of tw20 tweeter download manual

The TW-20 Tweeter System contains two(2) 25mm soft dome tweeter units and protection modules that have been precision engineered to produce the highest quality audio for your vehicle.

Sizes: 1"(25mm) Tweeter set (4 ohm)

  • Peak Power: 150 W
  • RMS Power: 50 W
  • 25mm Soft Dome Tweeter
  • Open Weave Silk Dome Diaphragm
  • Hexatech Aluminum Voice Coil Former
  • Low-Viscosity Ferro-Fluid Cooling
  • Pure Copper Voice Coil Wire
  • Highest Grade Neodymium Magnet
  • Low Resonance Frequency: 1,500 Hz
  • Nominal Diameter: 1 inch(25 mm)
  • Frequency Response: 1,500-20,000 Hz +- 2 dB
  • Sensitivity: 92 dB
  • Power Handling: 50 W(RMS)
  • Mounting Diameter: 1.73 inch(44 mm)
  • Mounting Depth: 0.95 inch(24 mm)
go to top
