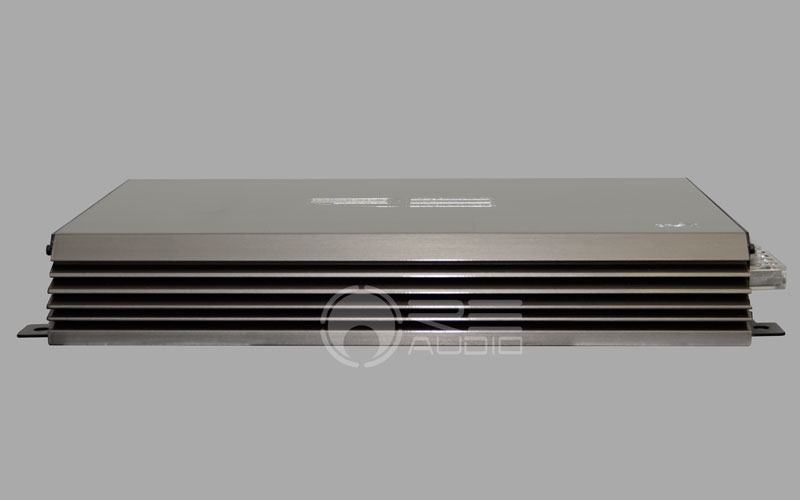

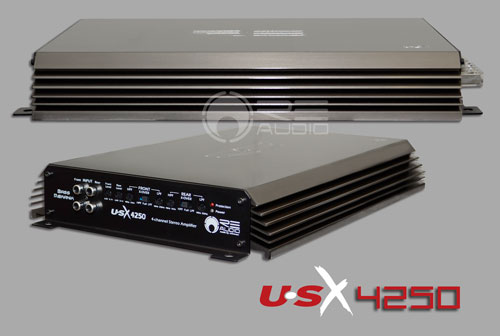

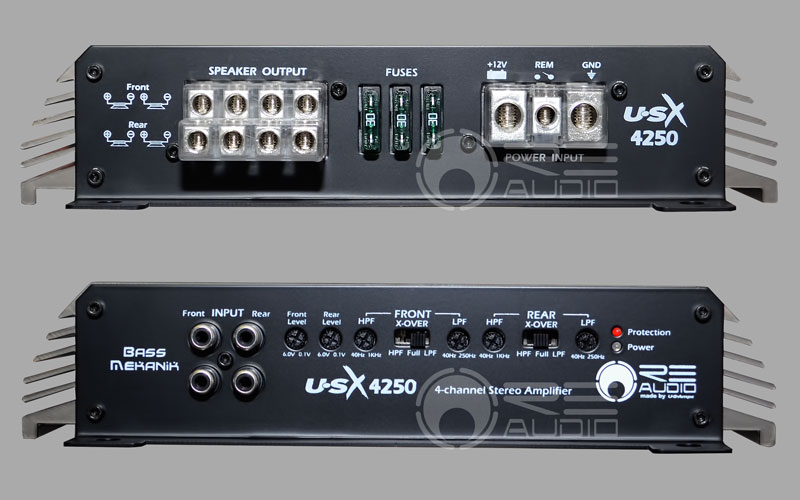

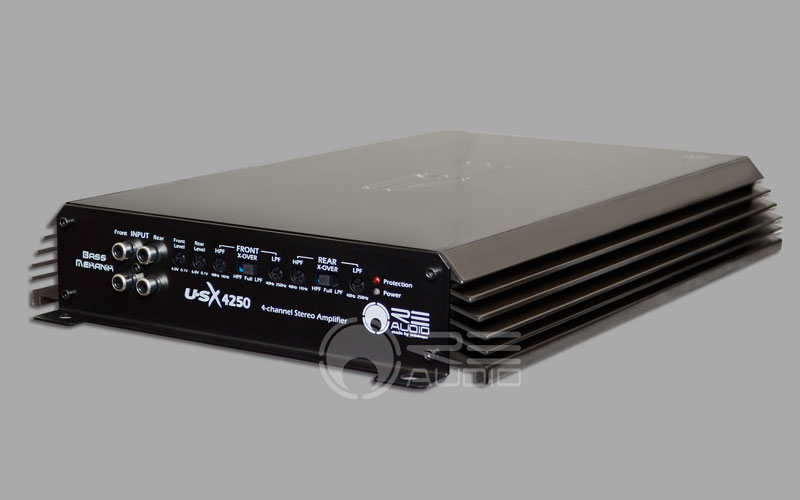

Class AB, 4-Channel, High Speed Stereo Amplifier

• SKU #: USX 4250
• Class: AB
• Channel: 4 CH
• Dynamic Power: 1200 W
• RMS Power (4Ω@14.4V): 100 W x 4
• RMS Power (2Ω@14.4V): 150 W x 4
• RMS Bridged Power (4Ω): 300 W x 2

• THD: <0.05 %
• SN Ration: 85 dB
• Frequency Response: 20 Hz ~ 30 KHz
• Crossover Frequency(Low Pass): 40 ~ 250 Hz
• Crossover Frequency(High Pass): 40 ~ 1 KHz
• Input Sensitivity: 0.2 ~ 8 V
• Heatsink Size(Length): 381 mm
• Fuse Rating: 30 A x 3

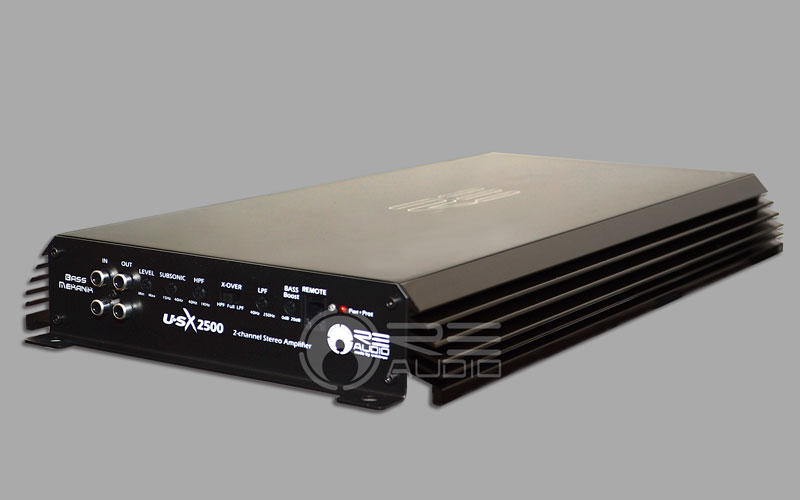

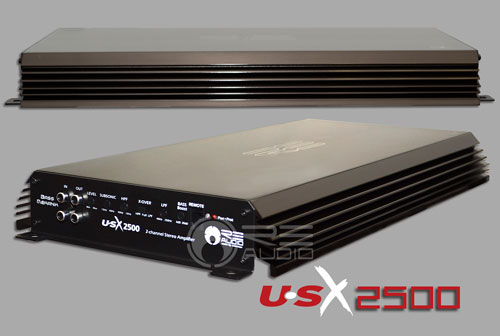

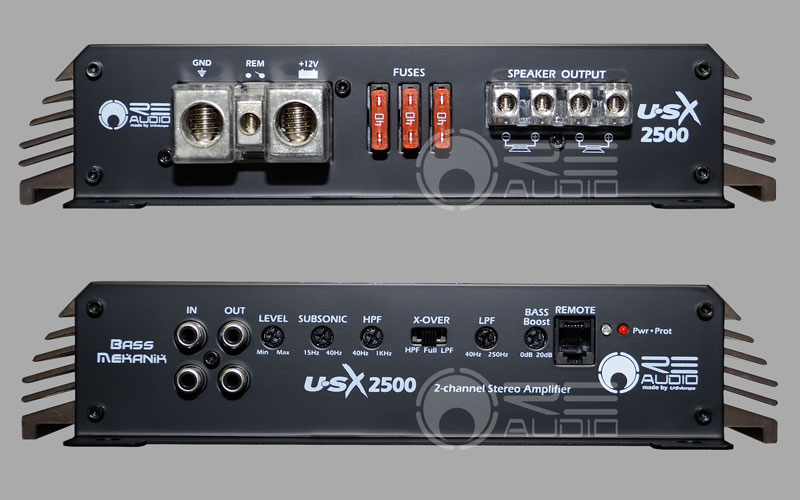

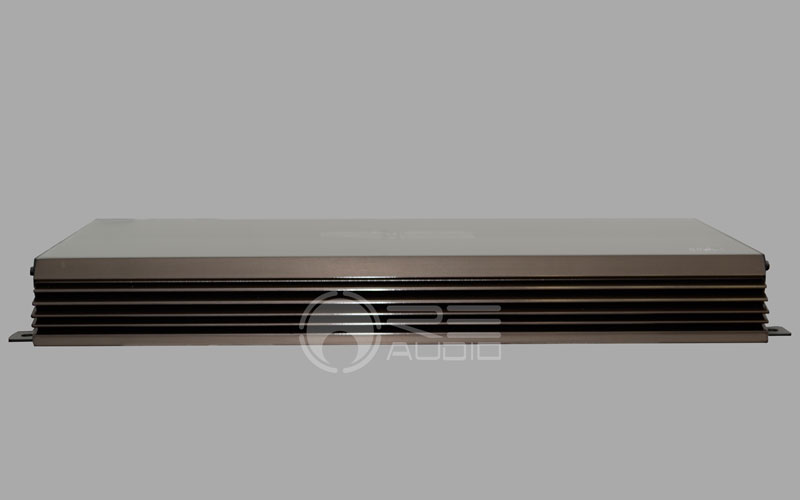

Class AB, 2-Channel, High Speed Stereo Amplifier

• SKU #: USX 2500
• Class: AB
• Channel: 2 CH
• Dynamic Power: 2500 W
• RMS Power (4Ω@14.4V): 250 W x 2
• RMS Power (2Ω@14.4V): 450 W x 2
• RMS Bridged Power (4Ω): 900 W x 1

• THD: <0.05 %
• SN Ration: 85 dB
• Frequency Response: 20 Hz ~ 30 KHz
• Crossover Frequency(Low Pass): 40 ~ 250 Hz
• Crossover Frequency(Subsonic): 15 ~ 40 Hz
• Crossover Frequency(High Pass): 40 ~ 1 KHz
• Bass Boost Control: 0 ~ 20 dB
• Input Sensitivity: 0.2 ~ 8 V
• Heatsink Size(Length): 491 mm
• Fuse Rating: 40 A x 3

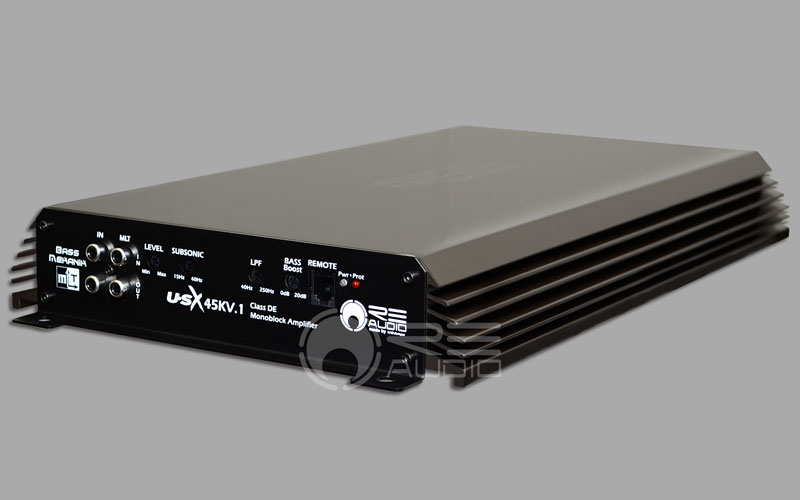

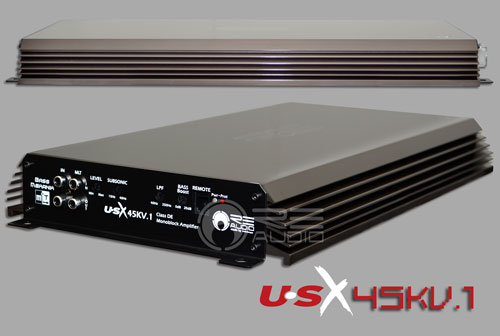

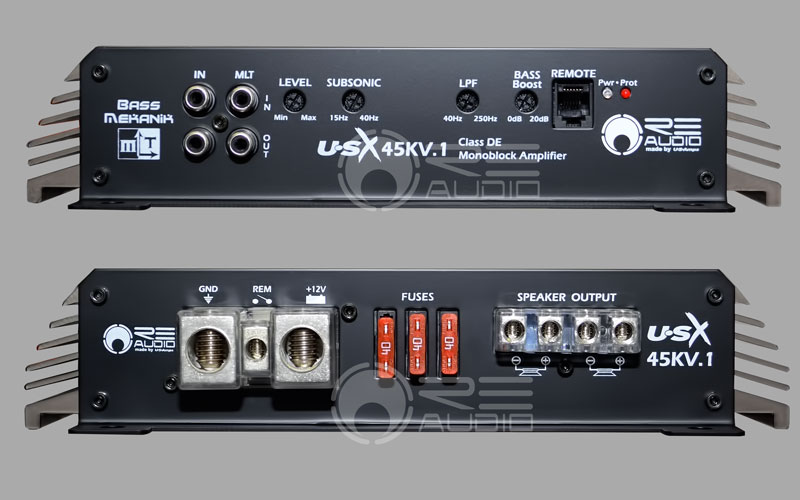

Class D, Monoblock, Power Bass Amplifier

• SKU #: USX 45KV.1
• Class: D
• Channel: 1 CH
• Dynamic Power: 4500 W
• RMS Power (4Ω@14.4V): 600 W x 1
• RMS Power (2Ω@14.4V): 1000 W x 1
• RMS Power (1Ω@14.4V): 1500 W x 1
• Bridged Power (4Ω, RMS): 3000 W x 1*
• Full Digital
• * With MLT™ connection

• THD: <0.1 %
• SN Ration: 80 dB
• Frequency Response: 15 Hz ~ 250 Hz
• Crossover Frequency(Low Pass): 40 ~ 250 Hz
• Crossover Frequency(Subsonic): 15 ~ 40 Hz
• Bass Boost Control: 0 ~ 20 dB
• Wired Remote Control: Yes
• Input Sensitivity: 0.2 ~ 8 V
• Heatsink Size(Length): 441 mm
• Fuse Rating: 40 A x 3

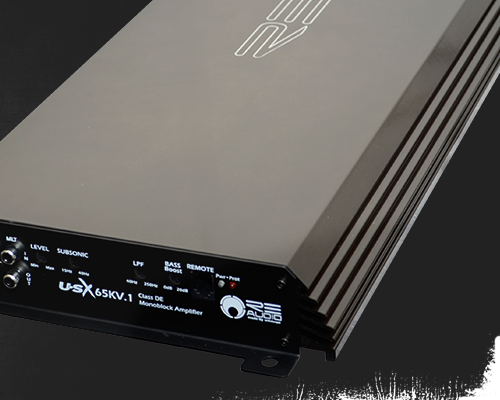

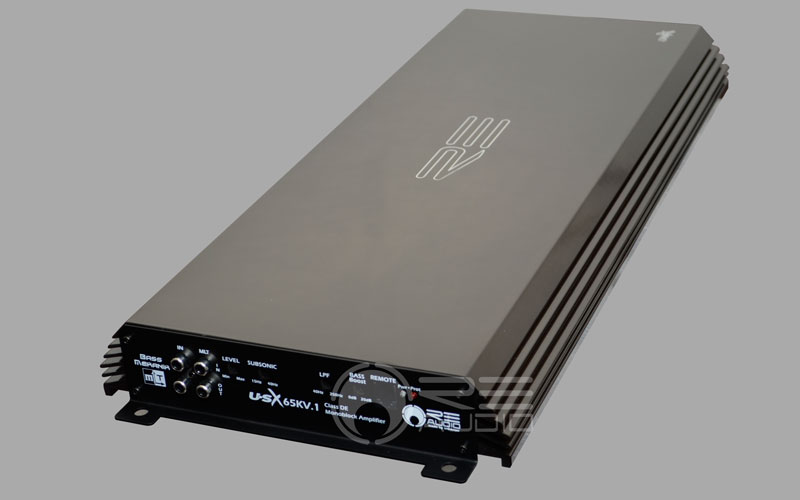

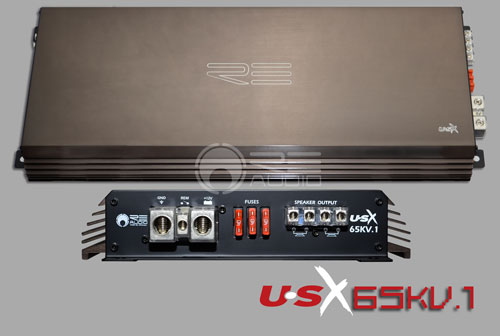

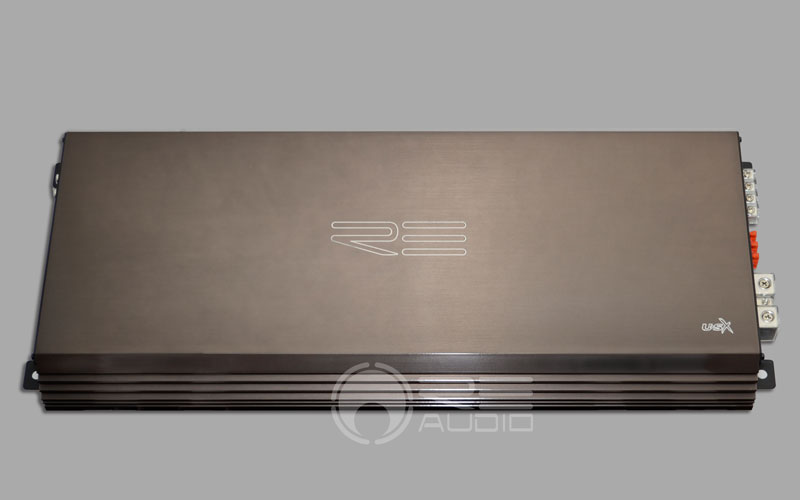

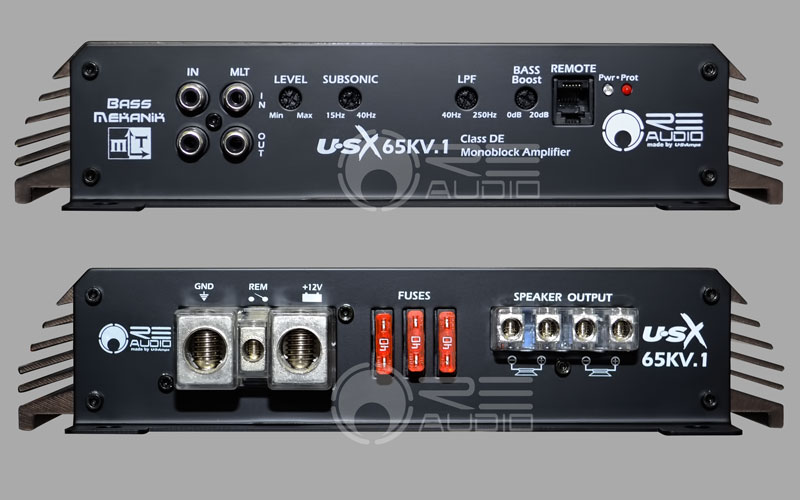

Class D, Monoblock, Power Bass Amplifier

• SKU #: USX 65KV.1
• Class: D
• Channel: 1 CH
• Dynamic Power: 6500 W
• RMS Power (4Ω@14.4V): 750 W x 1
• RMS Power (2Ω@14.4V): 1350 W x 1
• RMS Power (1Ω@14.4V): 2200 W x 1
• Bridged Power (4Ω, RMS): 4400 W x 1*
• Full Digital
• * With MLT™ connection

• THD: <0.1 %
• SN Ration: 80 dB
• Frequency Response: 15 Hz ~ 250 Hz
• Crossover Frequency(Low Pass): 40 ~ 250 Hz
• Crossover Frequency(Subsonic): 15 ~ 40 Hz
• Bass Boost Control: 0 ~ 20 dB
• Wired Remote Control: Yes
• Input Sensitivity: 0.2 ~ 8 V
• Heatsink Size(Length): 578 mm
• Fuse Rating: 40 A x 6*
• * You may see only 3 fuses from outside, the rest of 3 are inside the amplifier

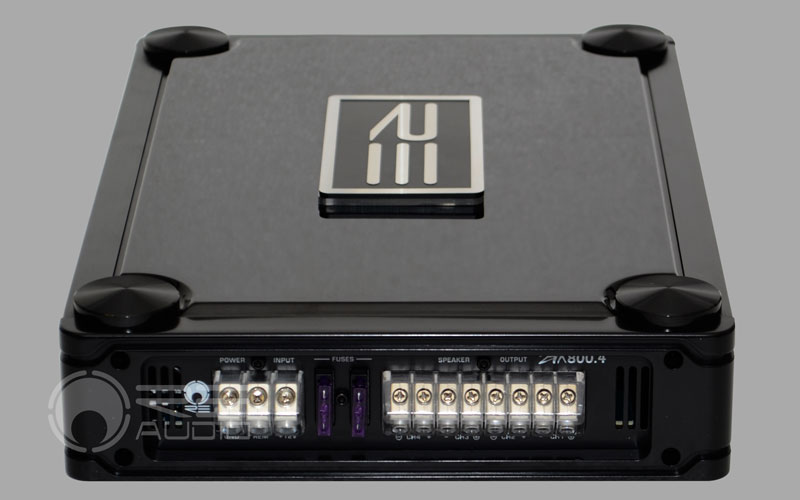

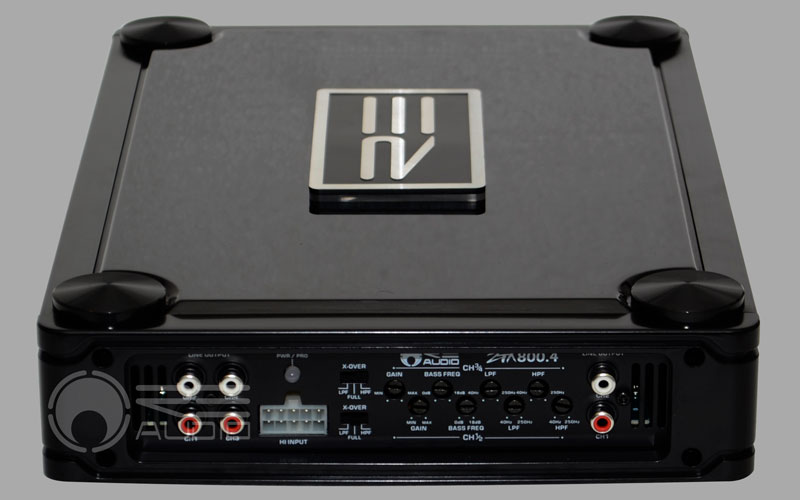

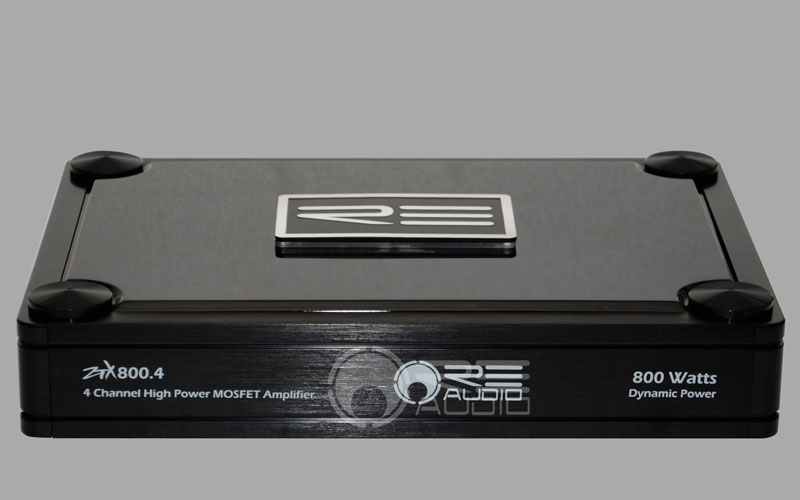

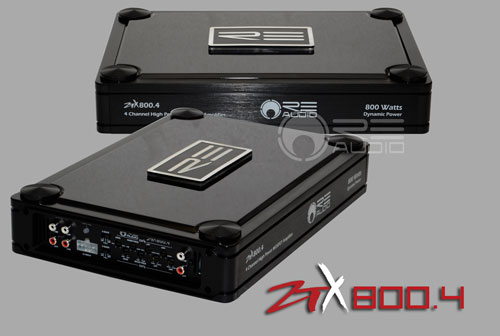

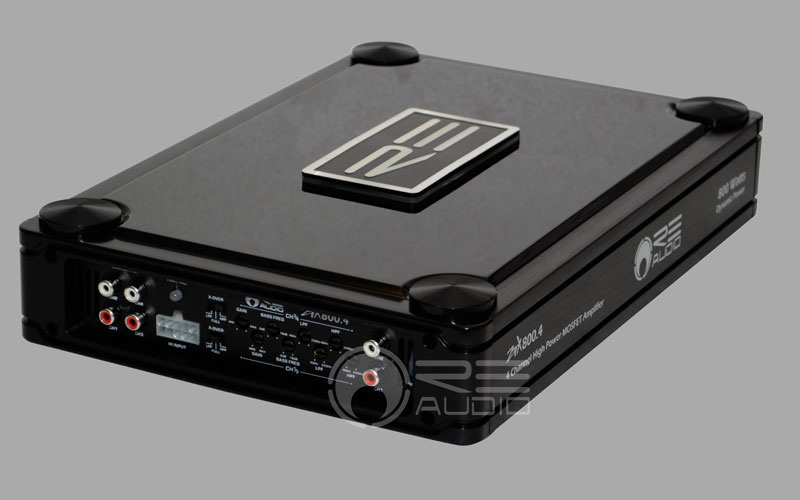

Class AB, 4-Channel, High Power MOSFET Amplifier

• SKU #: ZTX 800.4
• Class: AB
• Channel: 4 CH
• Dynamic Power: 800 W
• RMS Power (4Ω@14.4V): 85 W x 4
• RMS Power (2Ω@14.4V): 110 W x 4
• RMS Bridged Power (4Ω): 210 W x 2
• Piano "Black Lacquer" Finish
• "Back-lit" RE logo badge

• THD: <0.02 %
• SN Ration: 90 dB
• Frequency Response: 10 Hz ~ 30 KHz
• Crossover Frequency(Low Pass): 40 ~ 250 Hz
• Crossover Frequency(High Pass): 40 ~ 250 Hz
• Bass Boost Control: 0 ~ 18 dB
• Input Sensitivity: 0.2 ~ 2 V
• Heatsink Size(Length): 357 mm
• Fuse Rating: 35 A x 2

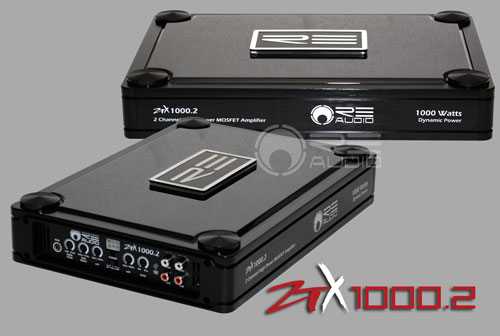

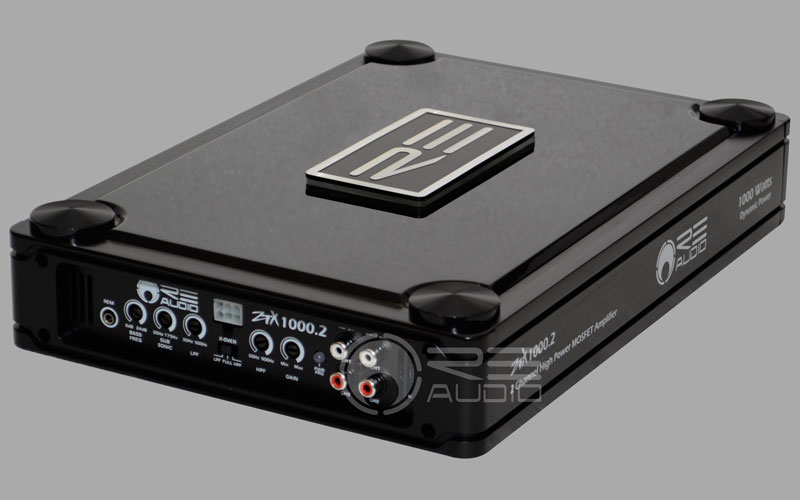

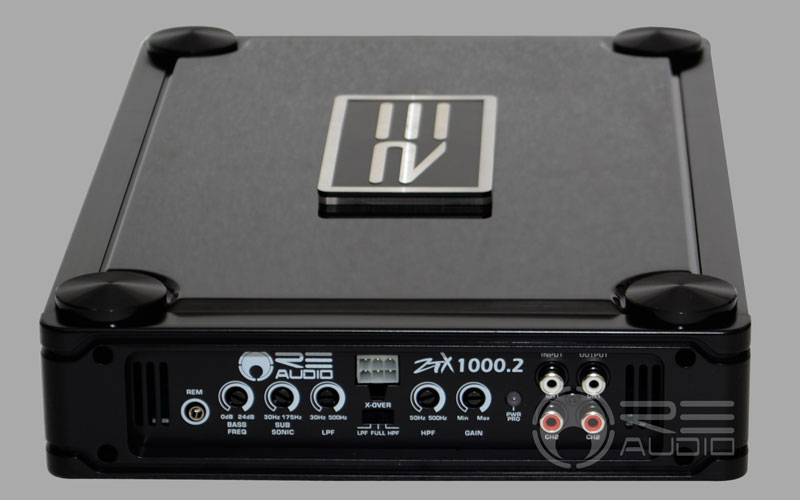

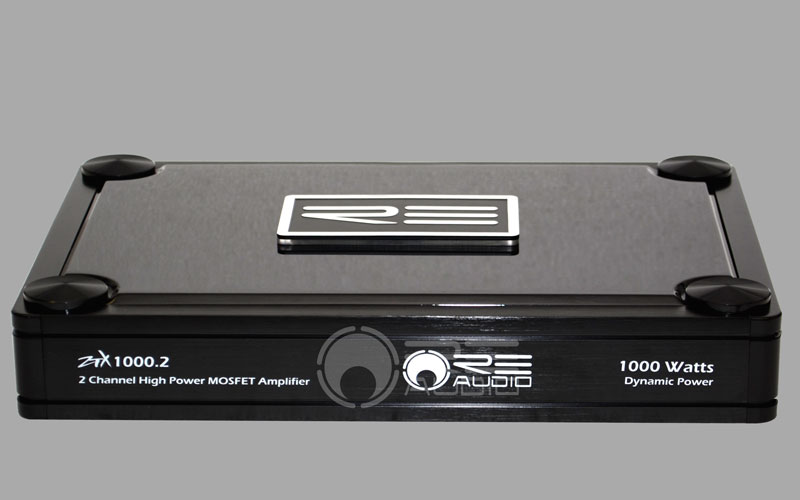

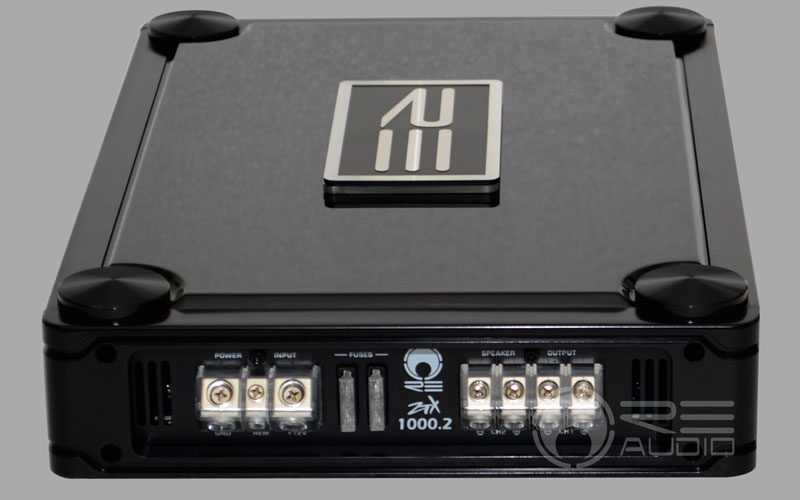

Class AB, 2-Channel, MOSFET Power Amplifier

• SKU #: ZTX 1000.2
• Class: AB
• Channel: 2 CH
• Dynamic Power: 1000 W
• RMS Power (4Ω@14.4V): 120 W x 2
• RMS Power (2Ω@14.4V): 180 W x 2
• RMS Bridged Power (4Ω): 310 W x 1
• Piano "Black Lacquer" Finish
• "Back-lit" RE logo badge

• THD: <0.02 %
• SN Ration: 90 dB
• Frequency Response: 10 Hz ~ 30 KHz
• Crossover Frequency(Low Pass): 30 ~ 500 Hz
• Crossover Frequency(High Pass): 50 ~ 500 Hz
• Crossover Frequency(Subsonic): 30 ~ 175 Hz
• Bass Boost Control: 0 ~ 24 dB
• Input Sensitivity: 0.2 ~ 2 V
• Heatsink Size(Length): 347 mm
• Fuse Rating: 25 A x 2

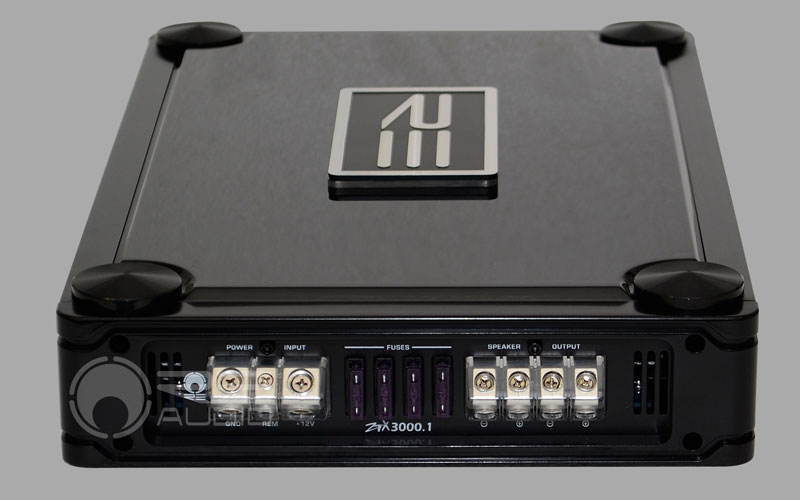

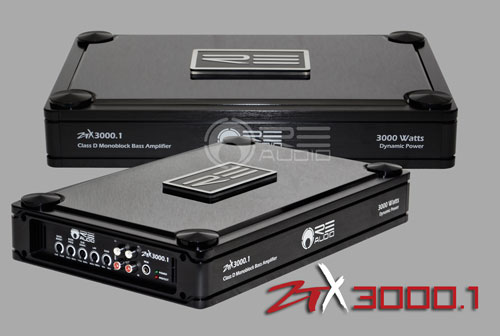

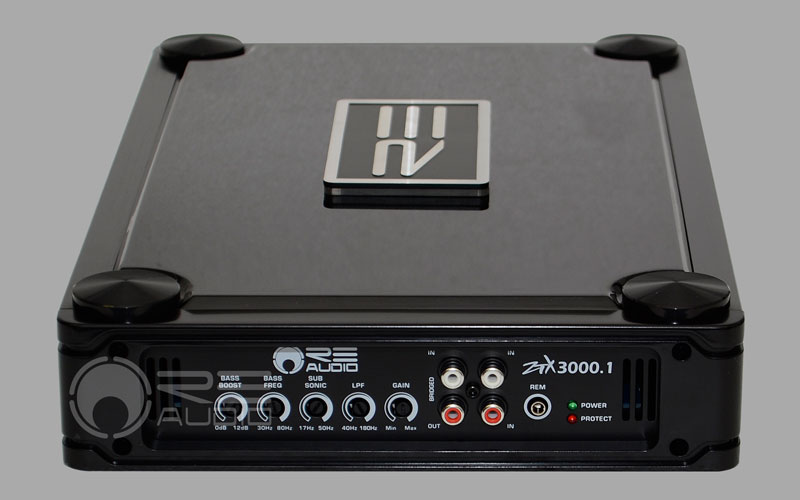

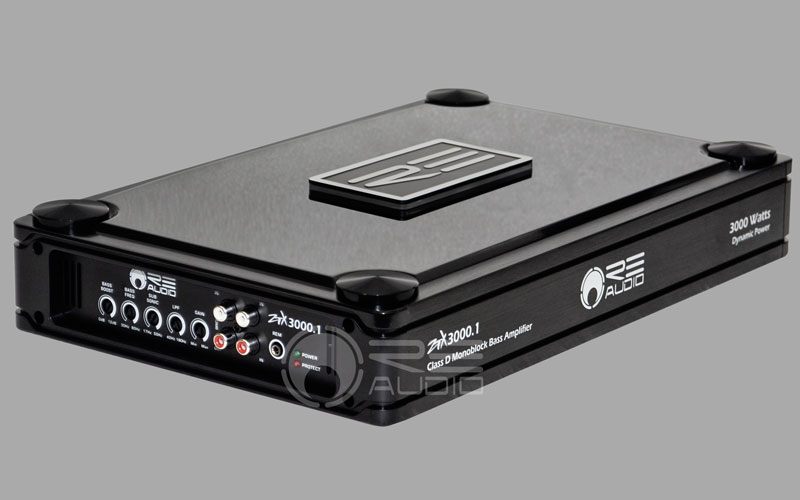

Class D, Monoblock, Bass Amplifier

• SKU #: ZTX 3000.1
• Class: D
• Channel: 1 CH
• Dynamic Power: 3000 W
• RMS Power (4Ω@14.4V): 600 W x 1
• RMS Power (2Ω@14.4V): 1000 W x 1
• RMS Power (1Ω@14.4V): 1400 W x 1
• Piano "Black Lacquer" Finish
• "Back-lit" RE logo badge
• Full Digital

• THD: <0.05 %
• SN Ration: 90 dB
• Frequency Response: 17 Hz ~ 180 Hz
• Crossover Frequency(Low Pass): 40 ~ 180 Hz
• Crossover Frequency(Subsonic): 17 ~ 50 Hz
• Bass Boost Control: 0 ~ 12 dB
• Wired Remote Control: Yes
• Input Sensitivity: 0.1 ~ 6 V
• Heatsink Size(Length): 375 mm
• Fuse Rating: 35 A x 4

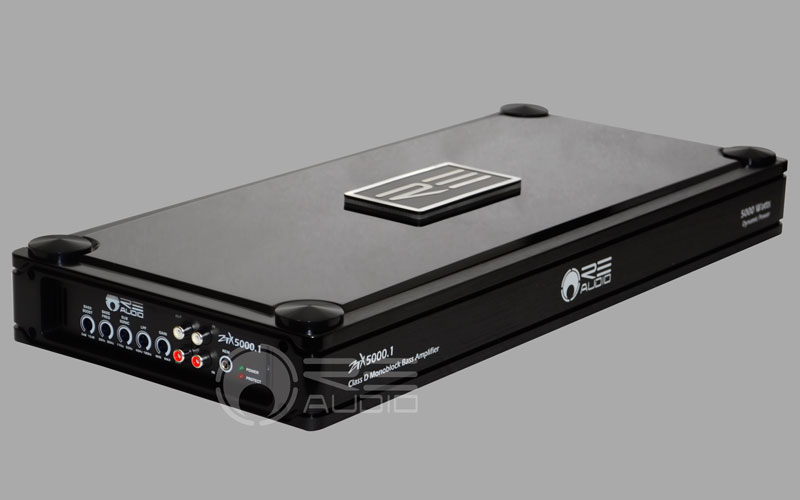

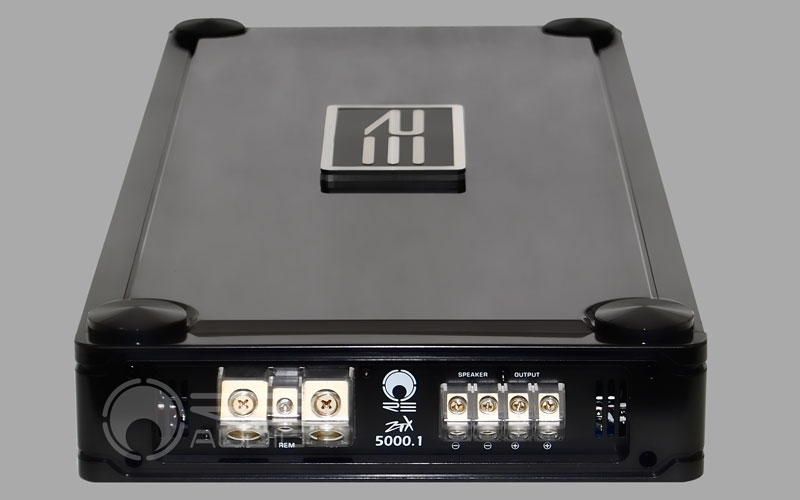

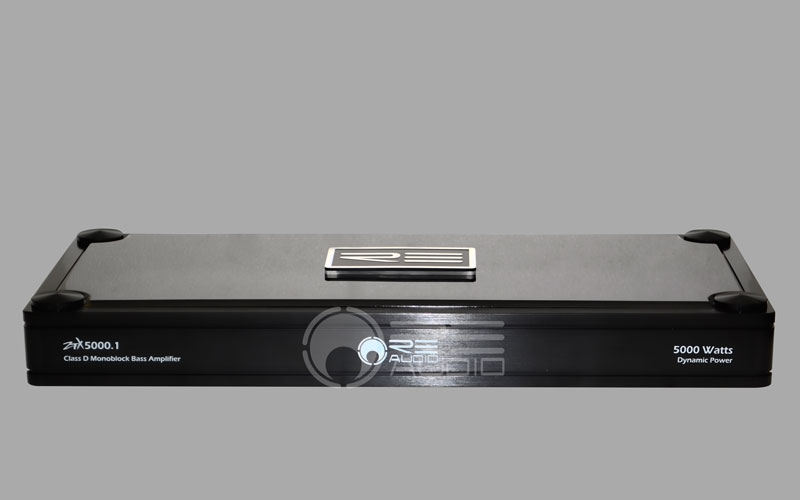

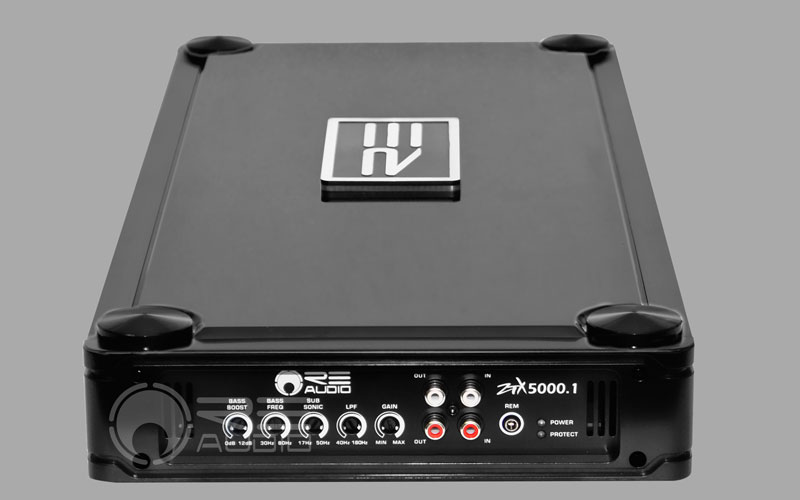

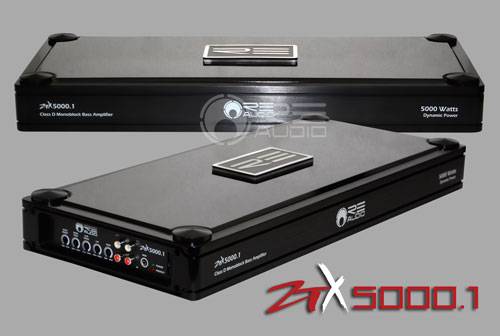

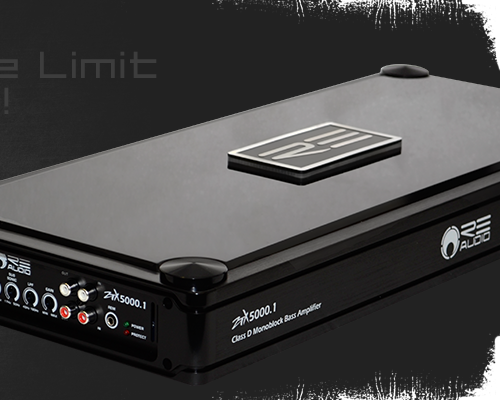

Class D, Monoblock, Bass Amplifier

• SKU #: ZTX 5000.1
• Class: D
• Channel: 1 CH
• Dynamic Power: 5000 W
• RMS Power (4Ω@14.4V): 1000 W x 1
• RMS Power (2Ω@14.4V): 1700 W x 1
• RMS Power (1Ω@14.4V): 2500 W x 1
• Piano "Black Lacquer" Finish
• "Back-lit" RE logo badge

• THD: <0.05 %
• SN Ration: 90 dB
• Frequency Response: 17 Hz ~ 180 Hz
• Crossover Frequency(Low Pass): 40 ~ 180 Hz
• Crossover Frequency(Subsonic): 17 ~ 50 Hz
• Bass Boost Control: 0 ~ 12 dB
• Wired Remote Control: Yes
• Input Sensitivity: 0.1 ~ 6 V
• Heatsink Size(Length): 552 mm
• Fuse Rating: 250 A x 1 (*At least 250A external fuse must be used)

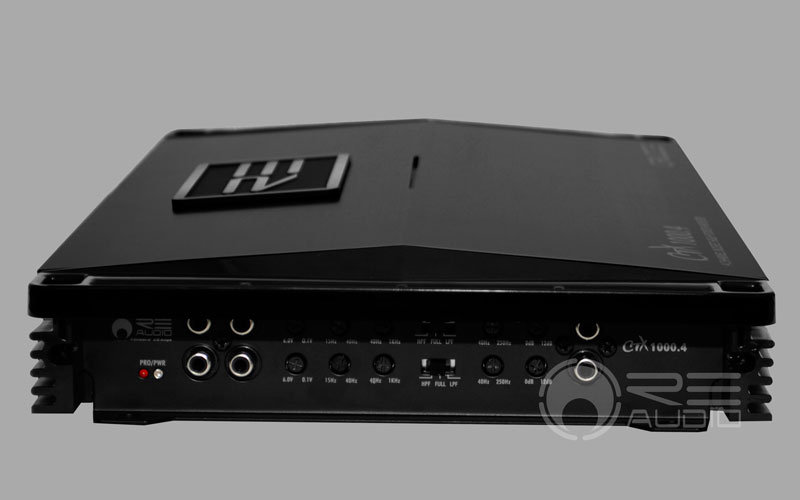

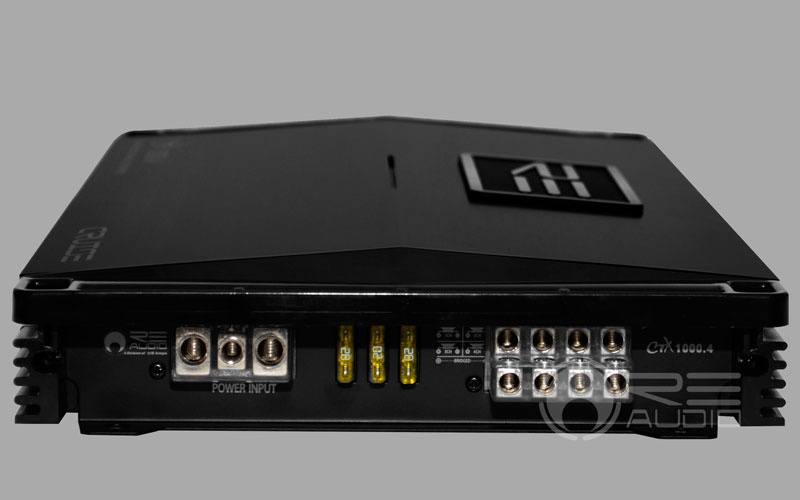

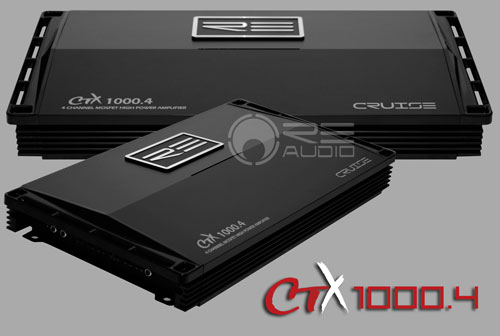

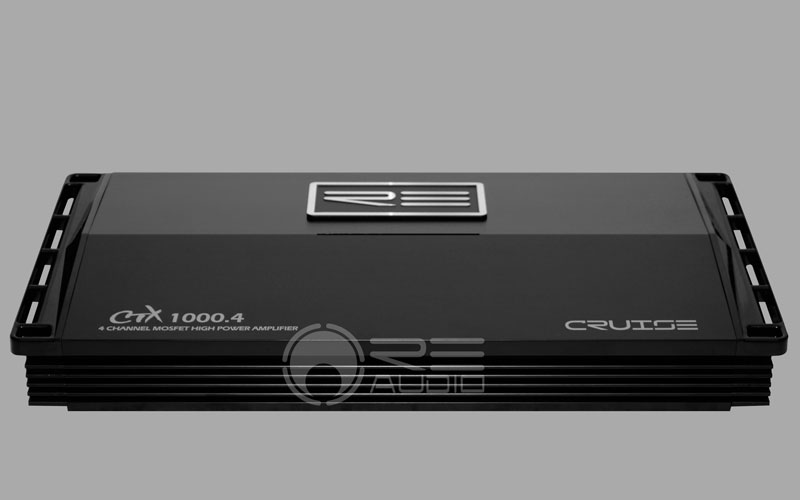

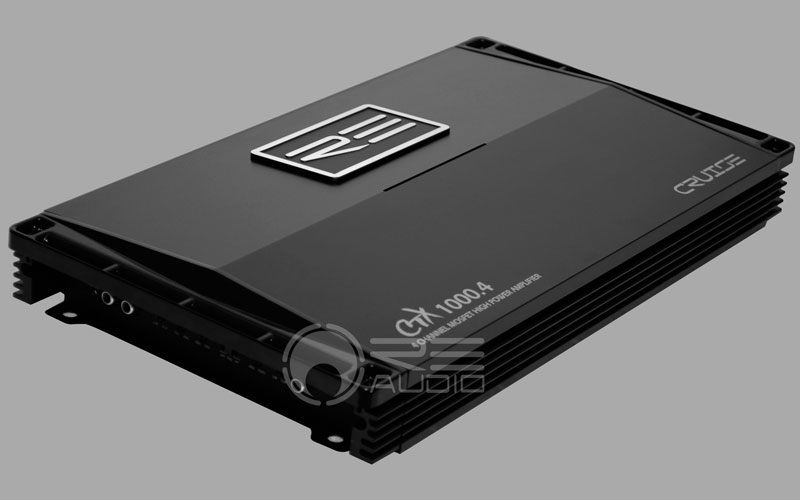

Class AB, 4-Channel, MOSFET Power Amplifier

• SKU #: CTX 1000.4
• Class: AB
• Channel: 4 CH
• Dynamic Power: 1000 W
• RMS Power (4Ω@14.4V): 100 W x 4
• RMS Power (2Ω@14.4V): 150 W x 4
• RMS Bridged Power (4Ω): 300 W x 2

• THD: <0.03 %
• SN Ration: 90 dB
• Frequency Response: 10 Hz ~ 50 KHz
• Crossover Frequency(Low Pass): 40 ~ 250 Hz
• Crossover Frequency(High Pass): 40 ~ 1 KHz
• Crossover Frequency(Subsonic): 15 ~ 40 Hz
• Bass Boost Control: 0 ~ 12 dB
• Input Sensitivity: 0.1 ~ 6 V
• Heatsink Size(Length): 440 mm
• Fuse Rating: 20 A x 3

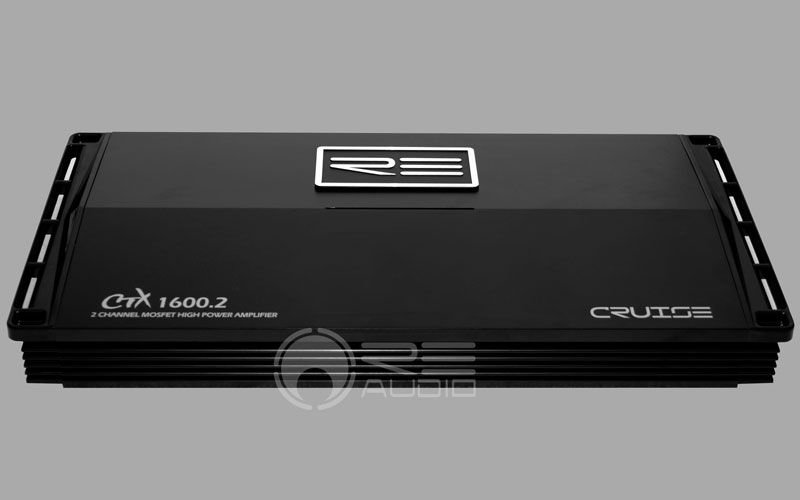

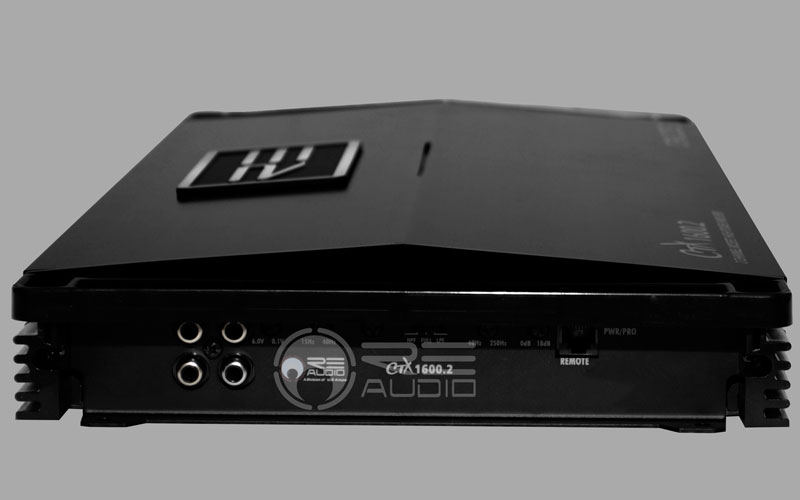

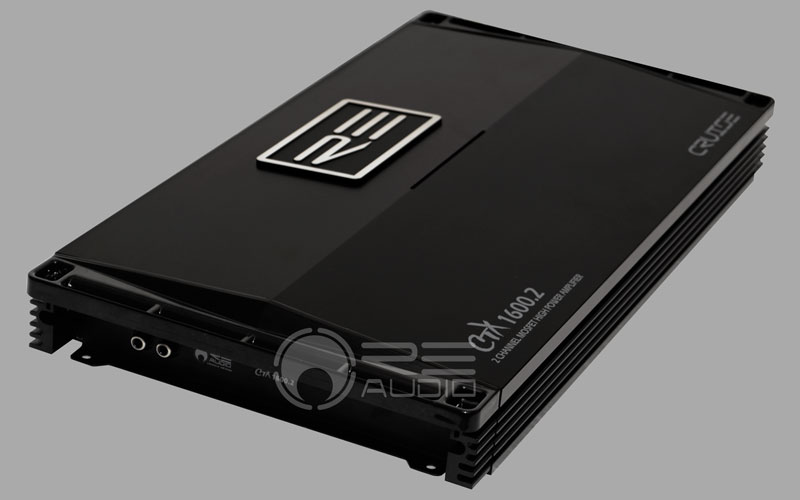

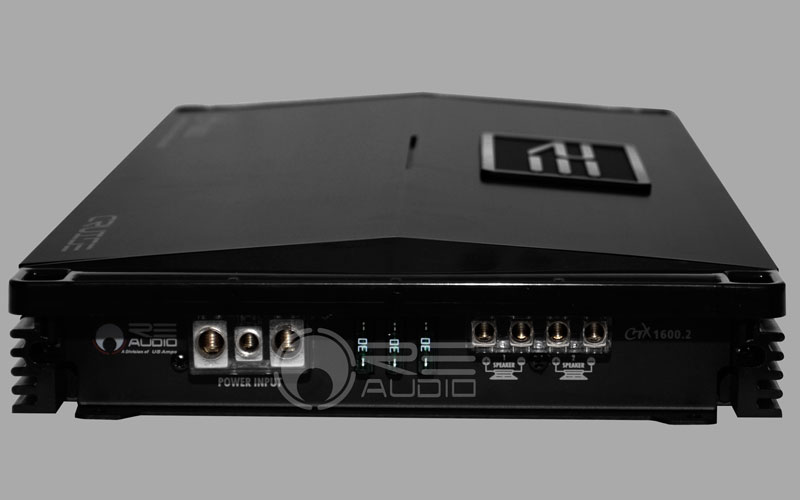

Class AB, 2-Channel, MOSFET Power Amplifier

• SKU #: CTX 1600.2
• Class: AB
• Channel: 2 CH
• Dynamic Power: 1600 W
• RMS Power (4Ω@14.4V): 200 W x 2
• RMS Power (2Ω@14.4V): 350 W x 2
• RMS Bridged Power (4Ω): 700 W x 1

• THD: <0.03 %
• SN Ration: 90 dB
• Frequency Response: 10 Hz ~ 50 KHz
• Crossover Frequency(Low Pass): 40 ~ 250 Hz
• Crossover Frequency(High Pass): 40 ~ 1 KHz
• Crossover Frequency(Subsonic): 15 ~ 40 Hz
• Bass Boost Control: 0 ~ 18 dB
• Input Sensitivity: 0.1 ~ 6 V
• Heatsink Size(Length): 480 mm
• Fuse Rating: 25 A x 3

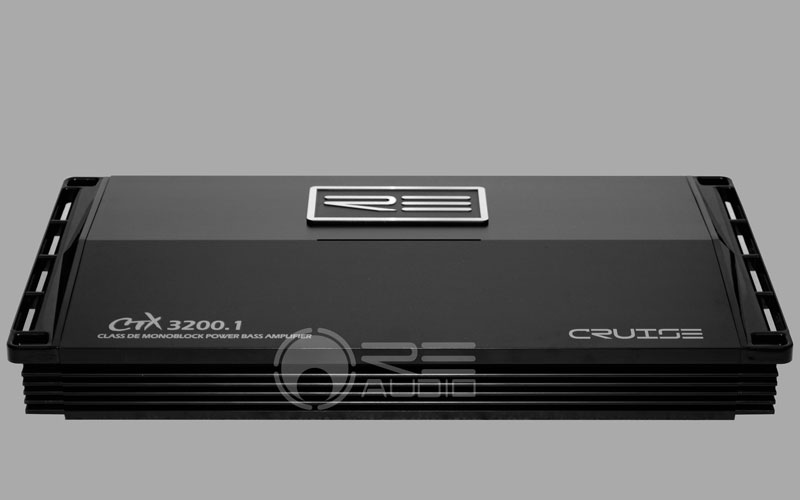

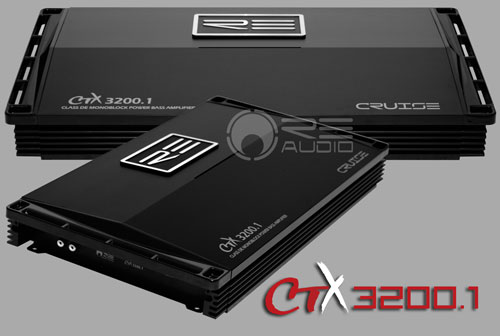

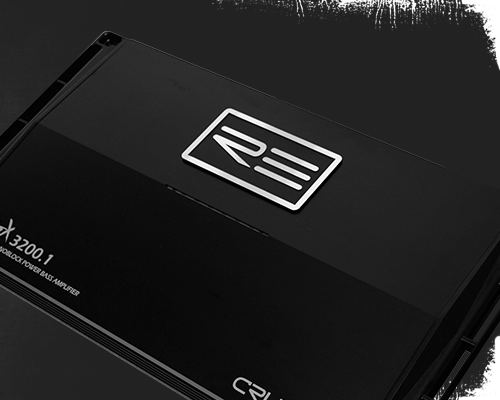

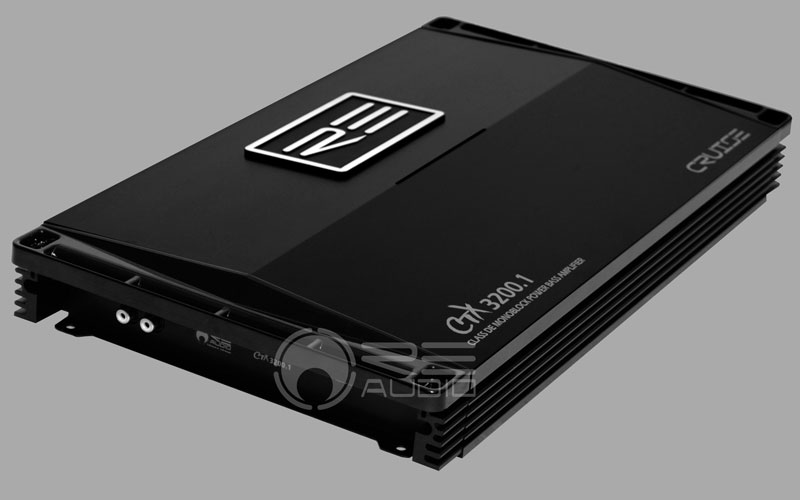

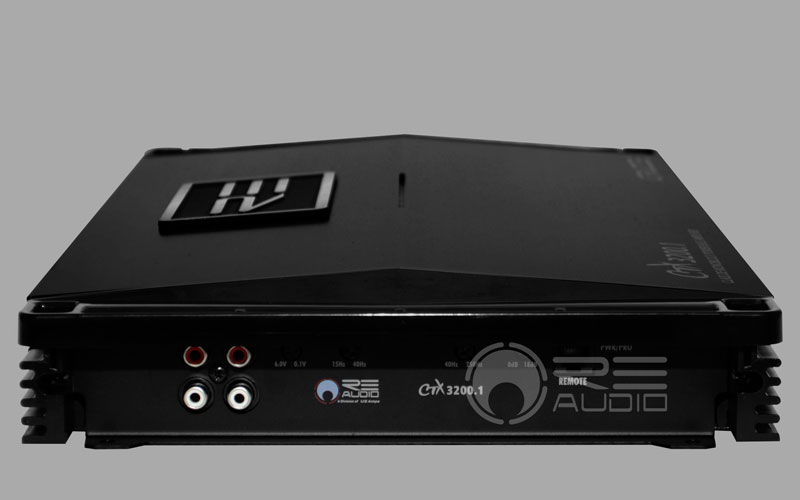

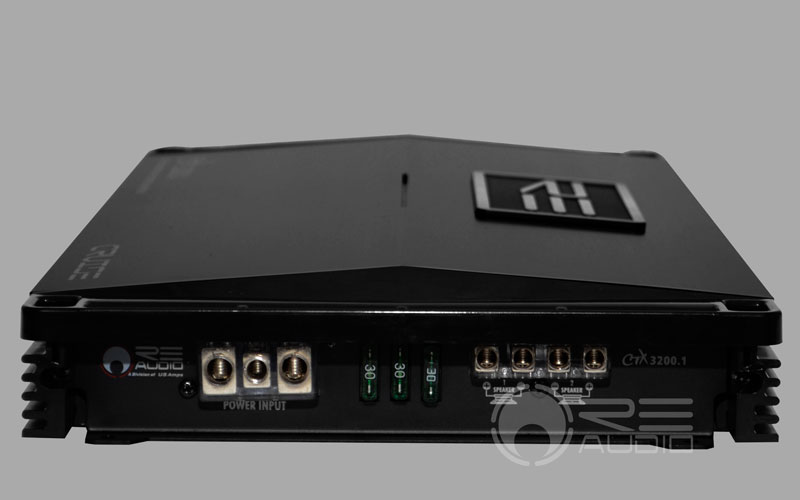

Class D, Monoblock, Power Bass Amplifier

• SKU #: CTX 3200.1
• Class: D
• Channel: 1 CH
• Dynamic Power: 3200 W
• RMS Power (4Ω@14.4V): 400 W x 1
• RMS Power (2Ω@14.4V): 750 W x 1
• RMS Power (1Ω@14.4V): 1200 W x 1
• Full Digital

• THD: <0.03 %
• SN Ration: 80 dB
• Frequency Response: 10 Hz ~ 300 Hz
• Crossover Frequency(Low Pass): 40 ~ 250 Hz
• Crossover Frequency(Subsonic): 15 ~ 40 Hz
• Bass Boost Control: 0 ~ 18 dB
• Wired Remote Control: Yes
• Input Sensitivity: 0.1 ~ 6 V
• Heatsink Size(Length): 440 mm
• Fuse Rating: 30 A x 3

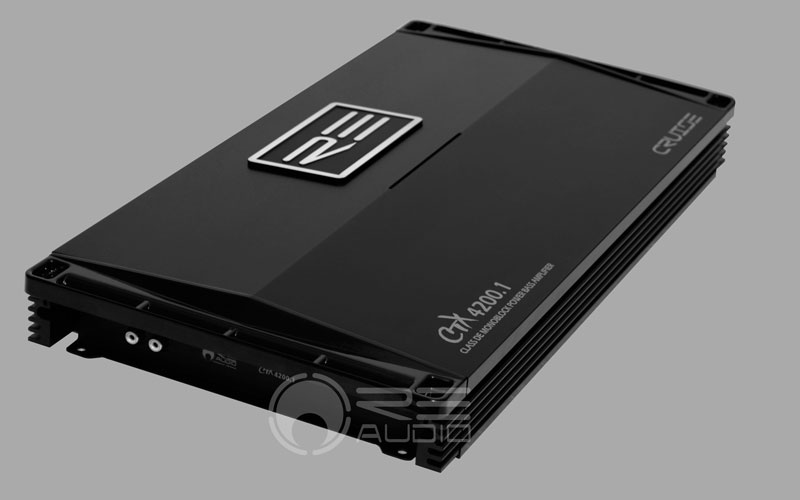

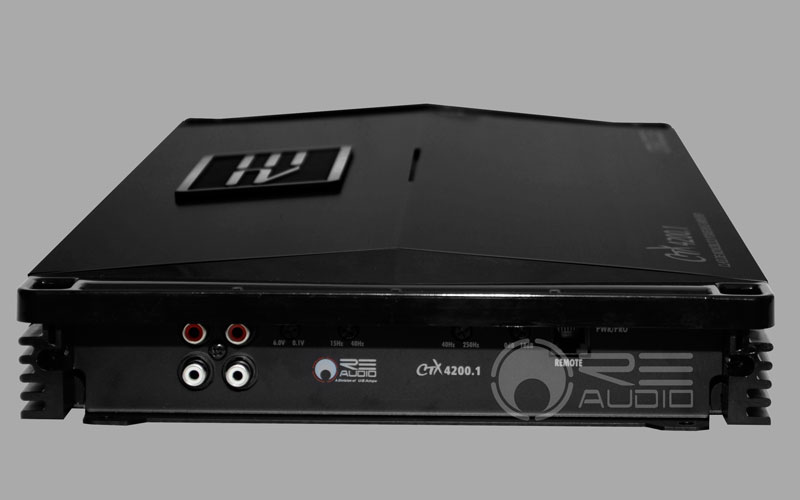

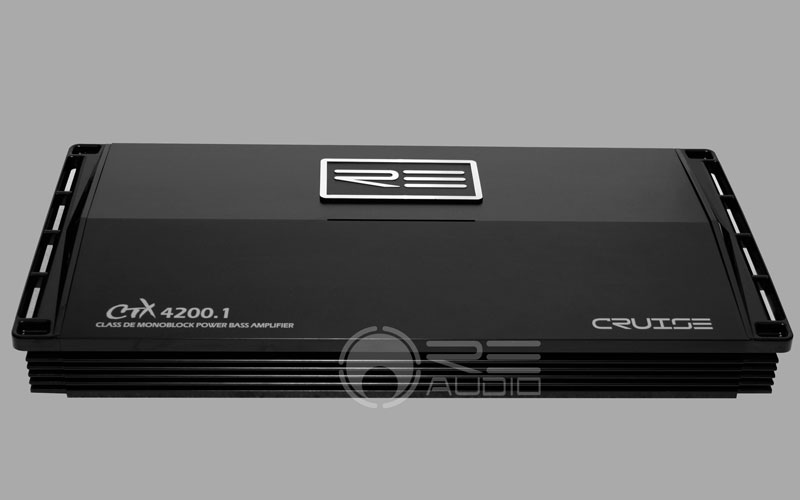

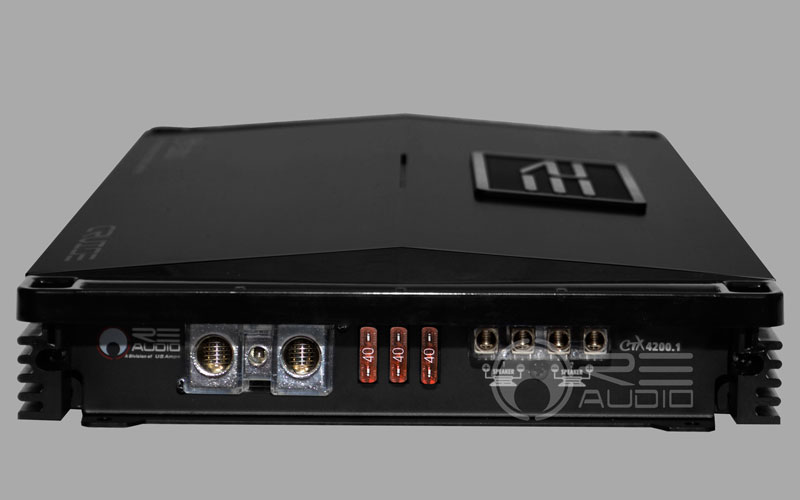

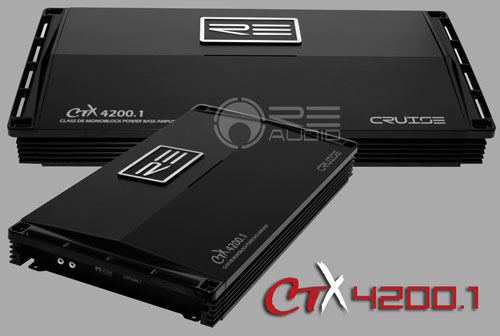

Class D, Monoblock, Power Bass Amplifier

• SKU #: CTX 4200.1
• Class: D
• Channel: 1 CH
• Dynamic Power: 4200 W
• RMS Power (4Ω@14.4V): 550 W x 1
• RMS Power (2Ω@14.4V): 1000 W x 1
• RMS Power (1Ω@14.4V): 1500 W x 1
• Full Digital

• THD: <0.03 %
• SN Ration: 80 dB
• Frequency Response: 10 Hz ~ 300 Hz
• Crossover Frequency(Low Pass): 40 ~ 250 Hz
• Crossover Frequency(Subsonic): 15 ~ 40 Hz
• Bass Boost Control: 0 ~ 18 dB
• Wired Remote Control: Yes
• Input Sensitivity: 0.1 ~ 6 V
• Heatsink Size(Length): 480 mm
• Fuse Rating: 40 A x 3

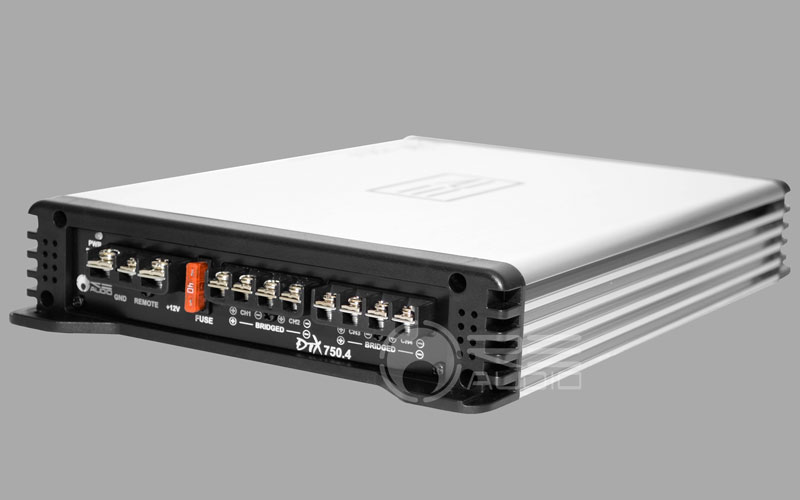

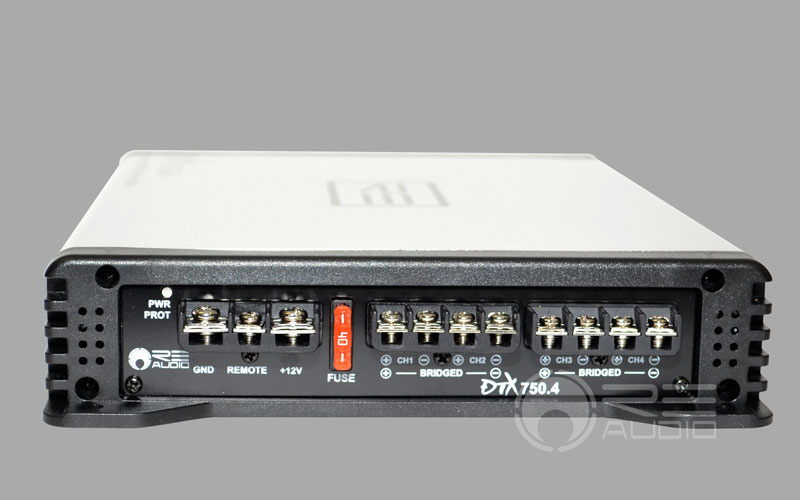

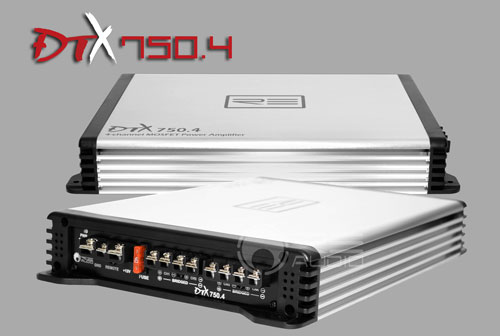

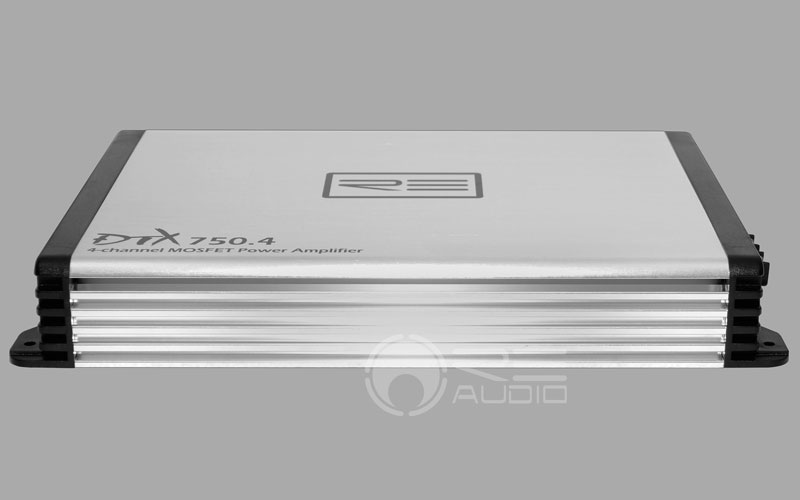

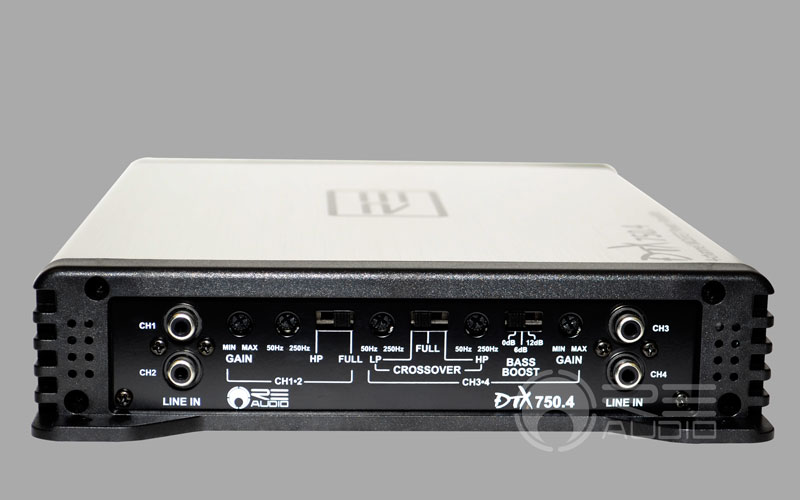

Class AB, 4-Channel, MOSFET Power Amplifier

• SKU #: DTX 750.4
• Class: AB
• Channel: 4 CH
• Dynamic Power: 750 W
• RMS Power (4Ω@14.4V): 60 W x 4
• RMS Power (2Ω@14.4V): 80 W x 4
• RMS Bridged Power (4Ω): 160 W x 2

• THD: <0.02 %
• SN Ration: 100 dB
• Frequency Response: 10 Hz ~ 50 KHz
• Crossover Frequency(Low Pass): 50 ~ 250 Hz
• Crossover Frequency(High Pass): 50 ~ 250 Hz
• Damping Factor: 180
• Bass Boost Control: 0 ~ 12 dB
• Input Sensitivity: 0.2 ~ 6 V
• Heatsink Size(Length): 310 mm
• Fuse Rating: 40 A x 1

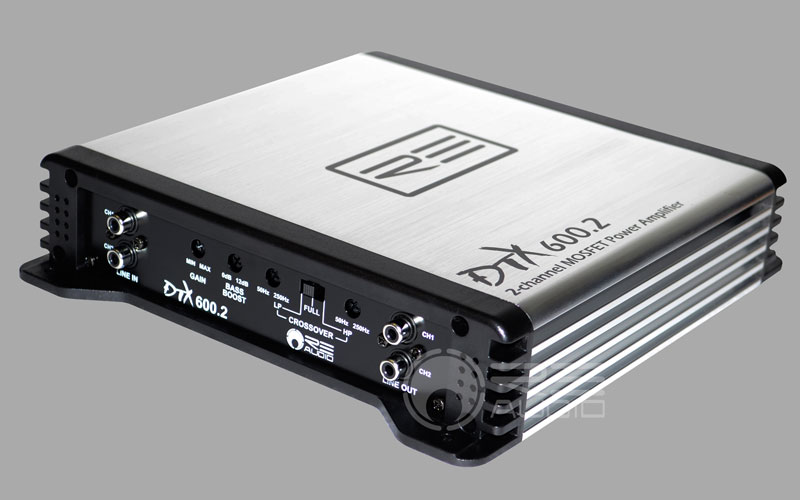

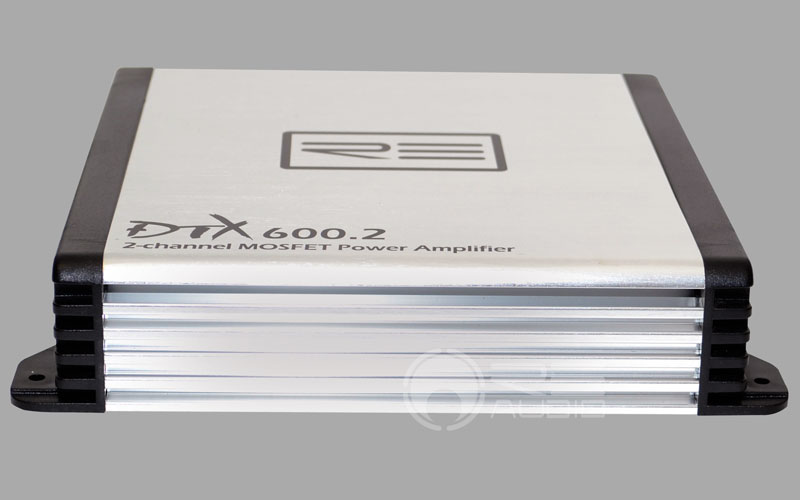

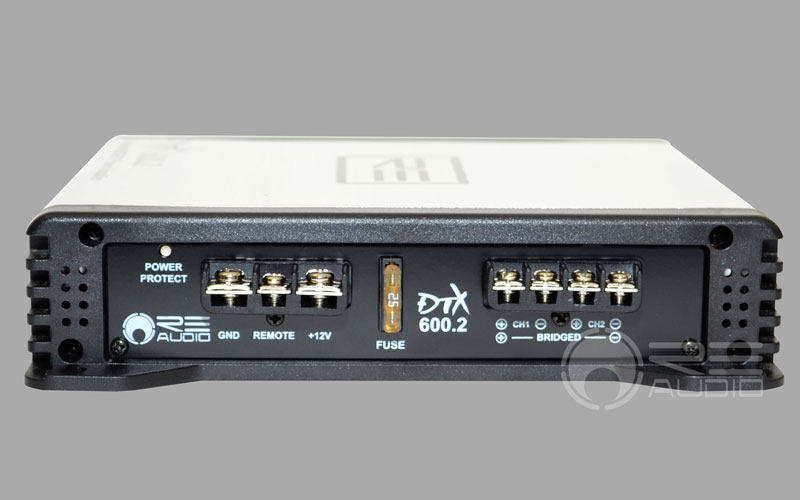

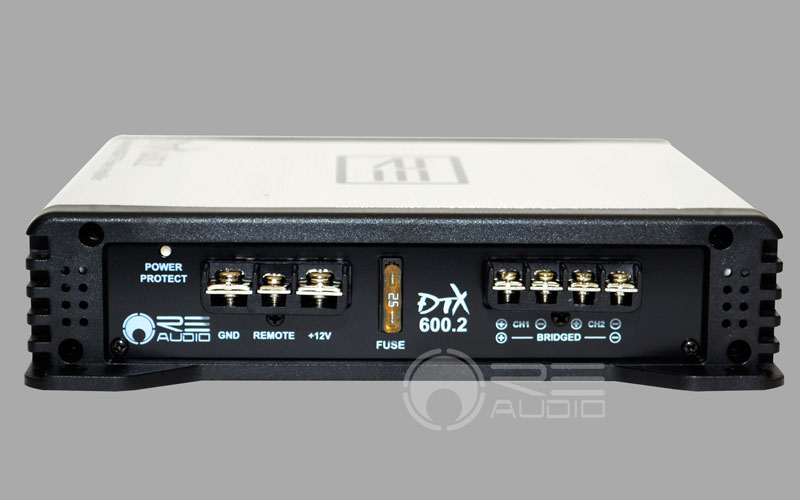

Class AB, 2-Channel, MOSFET Power Amplifier

• SKU #: DTX 600.2
• Class: AB
• Channel: 4 CH
• Dynamic Power: 600 W
• RMS Power (4Ω@14.4V): 60 W x 2
• RMS Power (2Ω@14.4V): 80 W x 2
• RMS Bridged Power (4Ω): 160 W x 1

• THD: <0.02 %
• SN Ration: 100 dB
• Frequency Response: 10 Hz ~ 50 KHz
• Crossover Frequency(Low Pass): 50 ~ 250 Hz
• Crossover Frequency(High Pass): 50 ~ 250 Hz
• Damping Factor: 180
• Bass Boost Control: 0 ~ 12 dB
• Input Sensitivity: 0.2 ~ 6 V
• Heatsink Size(Length): 210 mm
• Fuse Rating: 25 A x 1

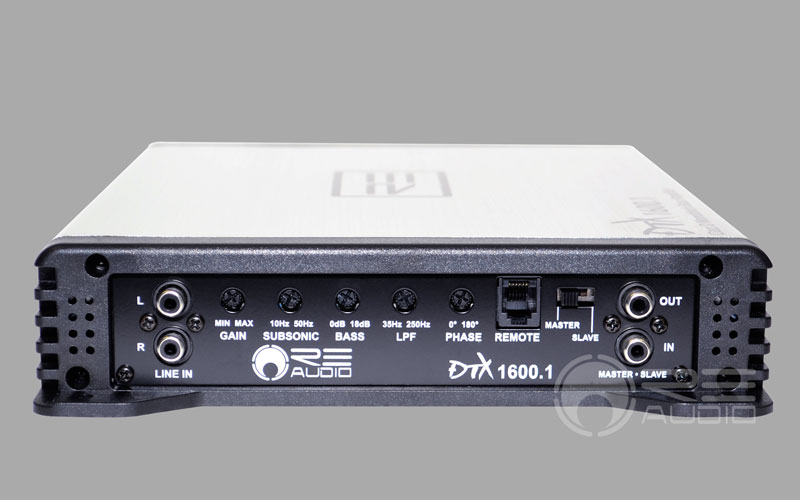

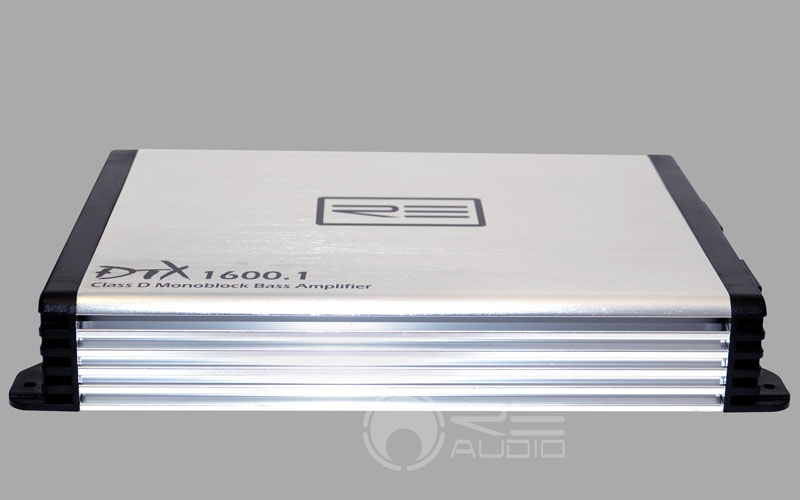

Class D, Monoblock, Power Bass Amplifier

• SKU #: DTX 1600.1
• Class: D
• Channel: 1 CH
• Dynamic Power: 1600 W
• RMS Power (4Ω@14.4V): 330 W x 1
• RMS Power (2Ω@14.4V): 560 W x 1
• RMS Power (1Ω@14.4V): 800 W x 1

• THD: <0.05 %
• SN Ration: 100 dB
• Frequency Response: 10 Hz ~ 250 Hz
• Crossover Frequency(Low Pass): 35 ~ 250 Hz
• Crossover Frequency(Subsonic): 10 ~ 50 Hz
• Damping Factor: 180
• Bass Boost Control: 0 ~ 18 dB
• Wired Remote Control: Yes
• Input Sensitivity: 0.2 ~ 6 V
• Heatsink Size(Length): 290 mm
• Fuse Rating: 40 A x 2

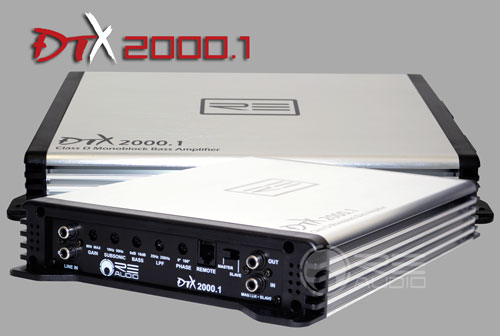

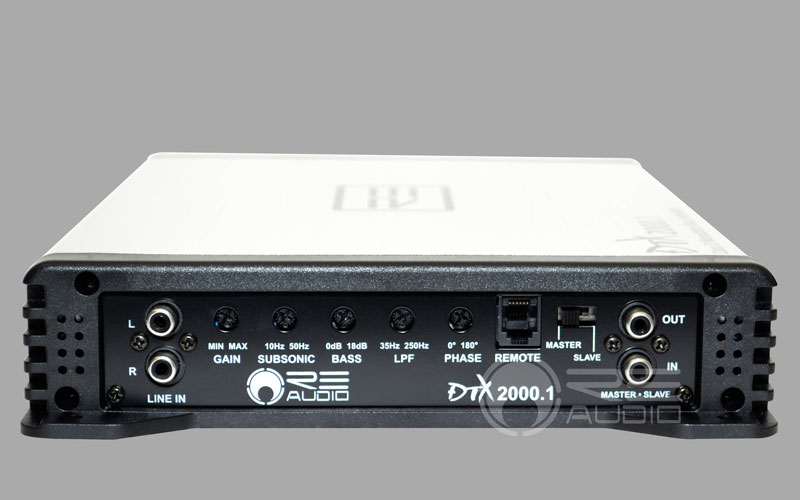

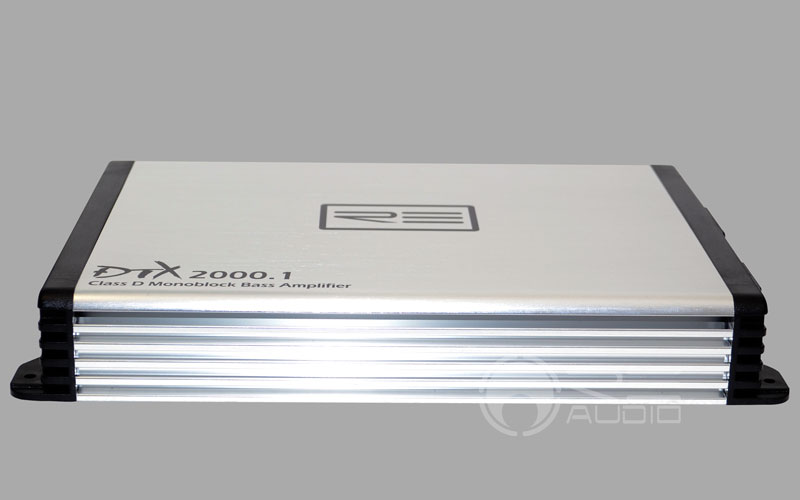

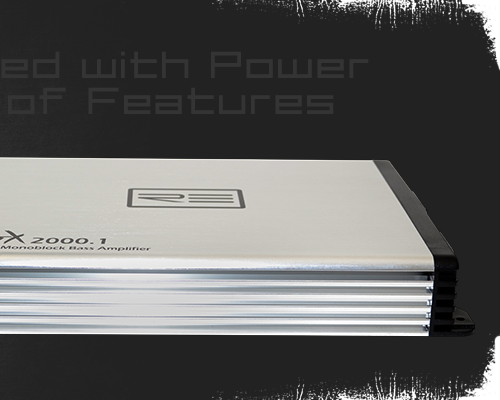

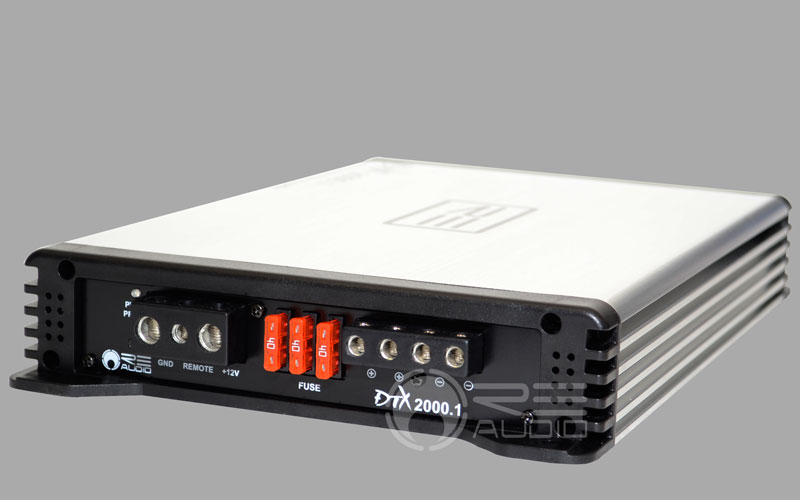

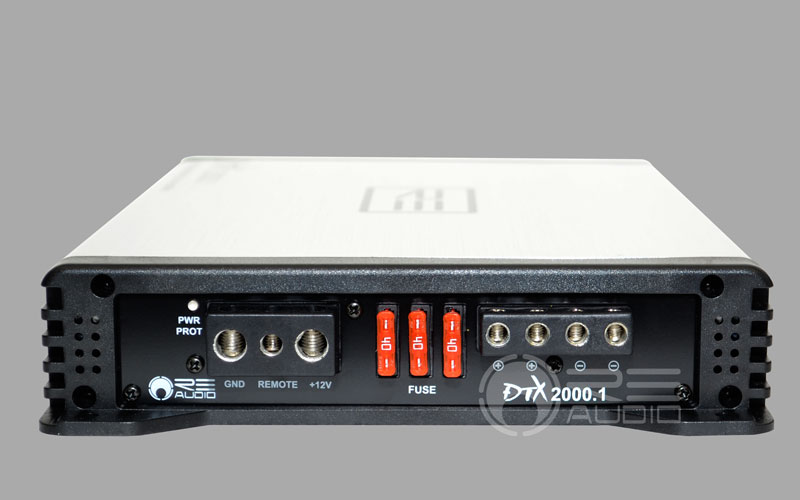

Class D, Monoblock, Power Bass Amplifier

• SKU #: DTX 2000.1
• Class: D
• Channel: 1 CH
• Dynamic Power: 2000 W
• RMS Power (4Ω@14.4V): 410 W x 1
• RMS Power (2Ω@14.4V): 700 W x 1
• RMS Power (1Ω@14.4V): 1000 W x 1

• THD: <0.05 %
• SN Ration: 100 dB
• Frequency Response: 10 Hz ~ 250 Hz
• Crossover Frequency(Low Pass): 35 ~ 250 Hz
• Crossover Frequency(Subsonic): 10 ~ 50 Hz
• Damping Factor: 180
• Bass Boost Control: 0 ~ 18 dB
• Wired Remote Control: Yes
• Input Sensitivity: 0.2 ~ 6 V
• Heatsink Size(Length): 310 mm
• Fuse Rating: 40 A x 3
